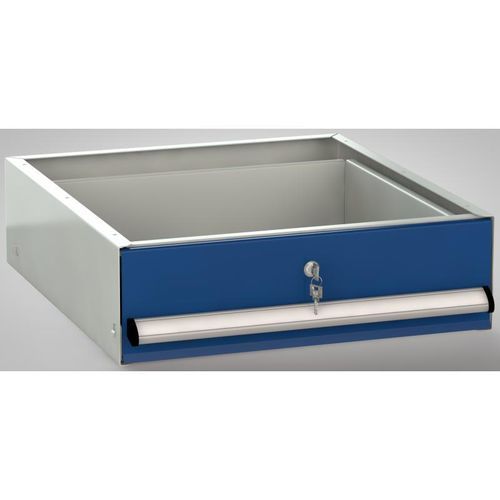

Modular drawer ES-BEA-150ES

Description
Under-bench single metal drawer designed to add secure, high-capacity storage beneath worktops. Lockable and rated for up to 100 kg load.

Short description
Metal single drawer with hanger frame. Front height 150 mm, lockable. Dimensions approx. 157 x 520 x 590 mm (H x W x D).

Highlights at a glance:

• High load capacity: 100 kg rated load for heavy tools and fixtures.
• Secure storage: central lock supplied with 2 keys to protect contents from unauthorized access.
• Easy installation: mounting hardware included; suitable for attachment under worktops from 30 mm thickness.
• Generous space: 150 mm front height; internal usable area and modular division corresponding to 27 x 27 units for organization.

Technical data:
Dimensions (H x W x D): approx. 157 x 520 x 590 mm
Usable dimensions (H x W x D): 130 x 445 x 445 mm
Front height: 150 mm
Load capacity: 100 kg (uniformly distributed)
Division: 27 x 27 units (no slot grid)
Security: lockable (incl. 2 keys)
Compatibility: for worktops from 30 mm thickness

Characteristics / Specifications

• Article no.: ES-BEA-150ES
• EAN: 4051152108058
• Body height: 120 mm
• Front height: 150 mm
• Total height: 157 mm
• Total width: 520 mm
• Total depth: 590 mm
• Usable dimensions: 130 x 445 x 445 mm
• Max drawer load: 100 kg
• Other internal dimensions: H 133 mm / W 460 mm / D 460 mm
• Availability: Ready to ship in 10 working days
