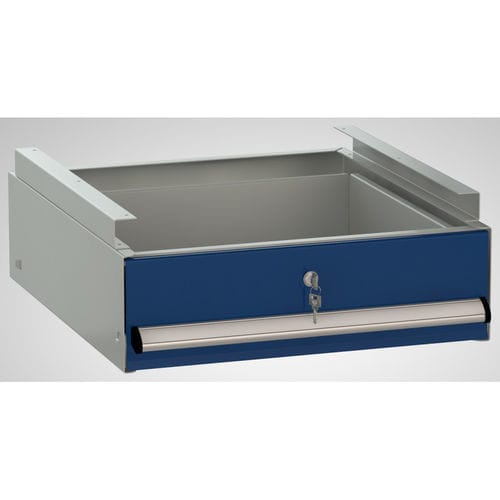

Pull-out drawer ES-BEA-150ES-APP

Short description
Metal single drawer with hanger frame. Front height 150 mm, lockable. Dimensions approx. 157 x 520 x 590 mm (H x W x D). More information in the specifications.

Features

• Partitioning: 27 x 27 units
• Without slot grid
• Includes mounting hardware (for panels from 30 mm thickness)
• Includes a pair of stacking/leveling profiles for single drawer with hanger frame
• Designed to compensate for 40 mm sub-beams and 40 mm front setback
• Leveling profile dimensions approx. 40 x 32 x 480 mm (H x W x D)

Quantity discount
Quantity | Discount per unit | You save
3 | €5.95 | Up to €17.85

Variants

• Frame/corpus colour: various RAL colours (e.g., RAL 7035 - Light Grey)
• Front colour: various RAL colours (e.g., RAL 5010 - Gentian Blue)

Additional information
Ready to ship in 10 working days
Price incl. VAT: €141.61 (Price excl. VAT: €119.00)

Technical specifications

• Article no.: ES-BEA-150ES-APP
• Shell height: 120 mm
• Front height: 150 mm
• Total height: 157 mm
• Total width: 520 mm
• Total depth: 590 mm
• Max. drawer load: 100 kg
• Drawer internal dimensions / partitioning: 27 x 27 units
• Additional profile (leveling profile) approx.: 40 x 32 x 480 mm (H x W x D)
• Height (single item): 133 mm
• Width (single item): 460 mm
• Depth (single item): 460 mm
• Weight (product meta): 14.8 kg
• EAN: 4051152480338
