Characteristics
- Function
- costing, reporting, data analysis, calculation, comparison
- Applications
- for cutting machines, for water-jet cutting
- Operating system
- Android, iOS
- Deployment mode
- for tablet computers, for smartphones
Description
Overview

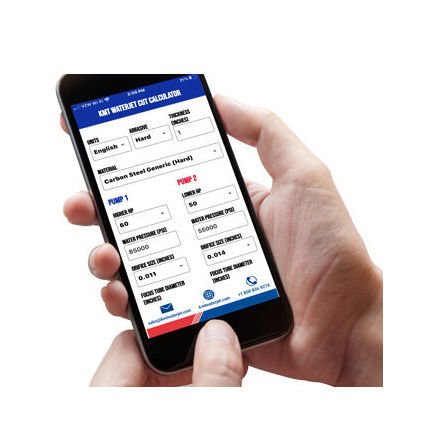

The KMT Cut Calculator App 2.0 compares waterjet cutting at 90,000psi versus 60,000psi to quantify differences in cutting time, speed/capacity, abrasive consumption and cost per part. The app includes 25 rated materials and configurable inputs for substrate thickness, horsepower, orifice size and abrasive feed rate. The application is available free on iOS and Android and includes a webinar training video.
Features
Materials rated
Additional information
The app supports a wide range of substrate thicknesses, horsepower options, nozzle/orifice sizes and abrasive feed rates to generate comparative outputs for cutting time, speed/capacity and cost. A webinar/training video demonstrates how to use the calculator and interpret results for production planning. The app is distributed free on the Apple App Store and Google Play.
Technical specifications
The KMT Cut Calculator App 2.0 compares waterjet cutting at 90,000psi versus 60,000psi to quantify differences in cutting time, speed/capacity, abrasive consumption and cost per part. The app includes 25 rated materials and configurable inputs for substrate thickness, horsepower, orifice size and abrasive feed rate. The application is available free on iOS and Android and includes a webinar training video.
Features
- Direct comparison of cutting times and performance at 90,000psi vs 60,000psi
- Speed/capacity calculation for selected materials and thicknesses
- Cost-per-part and cost-per-job estimation (abrasive use, labour, electricity, water)
- Abrasive consumption analysis with potential savings (up to ~50% abrasive reduction indicated in some scenarios)
- Demonstrates impact of faster cutting on throughput and unit cost
- Dedicated OEM access to advanced features
- Includes webinar/training video showing use and interpretation of results
Materials rated
- Aluminum (2024)
- Aluminum (6061)
- Acrylic
- Brass
- Bronze
- Copper
- Carbon steel (hard)
- Carbon steel (mild)
- Glass
- Granite
- Inconel
- Invar
- Lead
- Polycarbonate
- Mild steel
- Nylon
- Polypropylene
- Quartzite
- Rubber
- Stainless steel (304)
- Stainless steel (316)
- Titanium
- Tool steel (rc. 60)
- Tool steel (rc. 20)
- White marble
Additional information
The app supports a wide range of substrate thicknesses, horsepower options, nozzle/orifice sizes and abrasive feed rates to generate comparative outputs for cutting time, speed/capacity and cost. A webinar/training video demonstrates how to use the calculator and interpret results for production planning. The app is distributed free on the Apple App Store and Google Play.
Technical specifications
- Product name: KMT Cut Calculator App
- Version: 2.0
- Platforms: iOS and Android (mobile)
- Rated materials: 25 predefined materials
- Comparison pressures: 90,000 psi vs 60,000 psi
- Functions: cutting time comparison, speed/capacity calculation, cost-per-part/job estimation, abrasive consumption analysis
- Key outcome: scenarios indicate up to ~50% abrasive savings with higher-pressure cutting
- Configurable inputs: substrate thickness, horsepower, orifice size, abrasive rate
- Includes: webinar/training video for operators and planners
