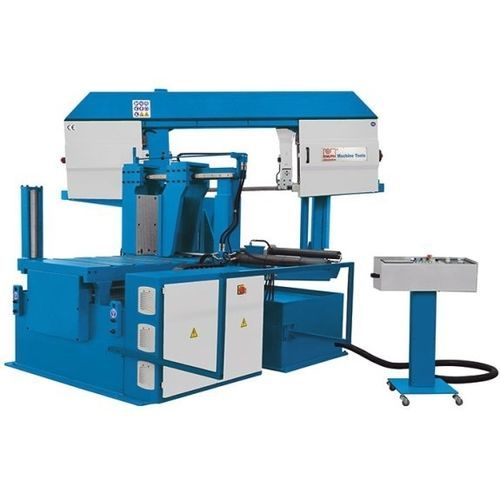

Band saw ABS 440 S NC

miterfor metalsfor profiles

The ABS S NC is a high-performance production band saw with a dual column design. The material is fed via a controlled servo motor with ball screw drive and measuring system with a positioning and repeat accuracy of +/- 0.2 mm. The Omron touchscreen controller can store up to 30 programs with 50 steps each. For additional flexibility, this series also offers hydraulic bundle clamping as an option. The manually set mitre angle can be read on a digital display. The workpiece is clamped hydraulically. Double-column design with precise linear guidance Mitre cutting with hydraulic workpiece clamping and digital display Omron touchscreen controller for fast programming and setup Material servo-feeding for high precision +/-0,2 mm Automated stroke height control with optical sensor The ABS S NC is a fully automated horizontal band saw series with parallel guiding system, which is ideally suited for series production with mitre cuts in solid materials, tubes, and profiles The workpiece feed with servo motor drive and preloaded ball screws deliver maximum precision The combination of linear guides and box ways result in low maintenance, long tool life and extreme ruggedness under heavy production conditions The saw frame, including guide frame, can be rotated manually up to 60° and fixed in the selected position via a hydraulic clamping device The fully automated mode allows mitre cut angles up to 45°, and the semi-automatic mode up to 60° The exact saw frame angle can easily be checked by the operator on a digital display A slight 3° inclination of the saw frame on the cutting axis increases cutting capacity and saw blade life
