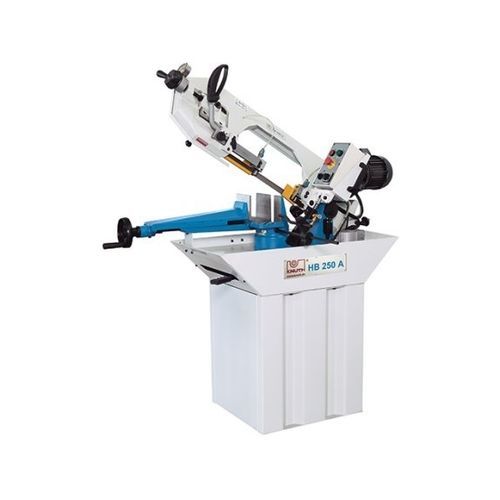

Band saw HB 250 A

horizontalfor metalscompact

The compact horizontal band saw with one-piece saw frame made of gray cast iron is suitable for mitre cuts and is a handy solution for every workshop. Cast-iron saw frame, one-piece construction Two speeds for cutting optimization Vise with quick-action clamping feature For mitre cuts, the operator moves the saw frame - not the material Cutting Capacities Cutting capacity 0° (flat) (length x width) - 245 mm x 190 mm Cutting capacity 45° (flat) (length x width) - 210 mm x 155 mm Belt speed - 40 / 90 m/min Drive capacity Main motor rating - 1,1 kW Measures and weights Overall dimensions (length x width x height) - 1,36 m x 0,58 m x 0,9 m Weight - 185 kg For miter cuts, the operator moves the saw frame - not the material Hydraulic cylinder provides for infinitely variable support pressure and saw frame feed Standard Equipment 1 saw blade Coolant system Base Hydraulic cylinder for saw frame Operator instructions Quick-action vise
