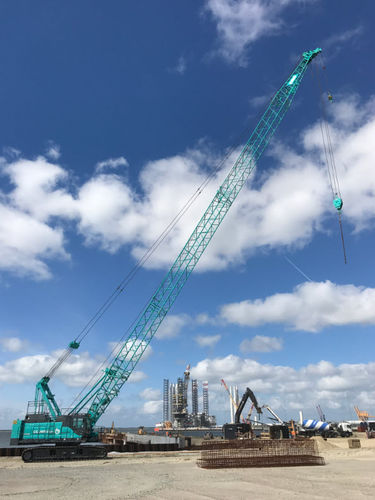

Crawler crane CKE900G-3boomfor constructionlifting
Add to favorites
Compare this product
Characteristics
- Configuration
- crawler
- Structure
- boom
- Operating environment
- for construction
- Applications
- lifting
- Other characteristics
- hydraulic
- Lift capacity
100 t
(110.2 us ton)- Horizontal reach
61 m
(200'01" )- Hoisting speed at max load
12,000 mm/min
(7.87 in/s)- Driving speed
1.1 km/h, 1.7 km/h
(0.7 mph, 1.1 mph)- Drive engine power
213 kW
(290 hp)- Swing speed
4 rpm
(25.1 rad.min-1)- Total counterweight
31,900 kg
(70,327.462 lb)- Total weight
90 t
(99 us ton)
Description
FIXED JIB
Max. Combination: - 51.8 m + 18.3 m
MAIN & AUX. WINCH
Rated Line Pull (Single Line): - 112 kN {11.4 tf}
Wire Rope Diameter: - 26 mm
Wire Rope Length: - 240 m (Main), 165 m (Aux)
Brake Type: - Wet-type multiple disc brake (Optional)
POWER PLANT
Model: - HINO J08E-YD
Engine Output: - 2,100 min-1
Fuel Tank Capacity: - 400 liters
WORKING SPEED
HYDRAULIC SYSTEM
Main Pumps: - 3 variable displacement
Max. Pressure: - 31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity: - 440 liters
