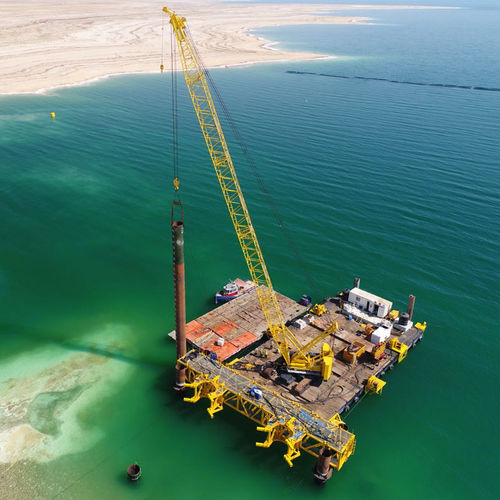

Crawler crane CKE2500G-2boomtransporthydraulic
Add to favorites
Compare this product
Characteristics
- Configuration
- crawler
- Structure
- boom
- Applications
- transport
- Other characteristics
- hydraulic
- Lift capacity
250 t
(275.6 us ton)- Horizontal reach
91.4 m
(299'10" )- Hoisting speed at max load
110,000 mm/min
(72.18 in/s)- Driving speed
0.5 km/h, 1 km/h
(0.3 mph, 0.6 mph)- Drive engine power
271 kW
(368 hp)- Swing speed
2.2 rpm
(13.8 rad.min-1)- Total counterweight
90,400 kg
(199,297.885 lb)- Total weight
220 t
(243 us ton)
Description
MAIN & AUX. WINCH
Rated Line Pull (Single Line): - 132 kN {13.5 tf}
Wire Rope Diameter: - 26 mm × 460 m
Wire Rope Length: - 480 m (Main) 390 m (Aux.)
Brake Type: - Wet-type multiple disc brake (Optional)
POWER PLANT
Model: - HINO P11C-VN
Engine Output: - 1850 min-1
Fuel Tank Capacity: - 400 liters
WORKING SPEED
HYDRAULIC SYSTEM
Main Pumps: - 4 variable displacement
Max. Pressure: - 32 MPa {326 kgf/cm2}
Hydraulic Tank Capacity: - 650 liters
WEIGHT
Ground Pressure: - 112 kPa
Transport Weight: - 43,980 kg*2 or 44,570 kg*3
