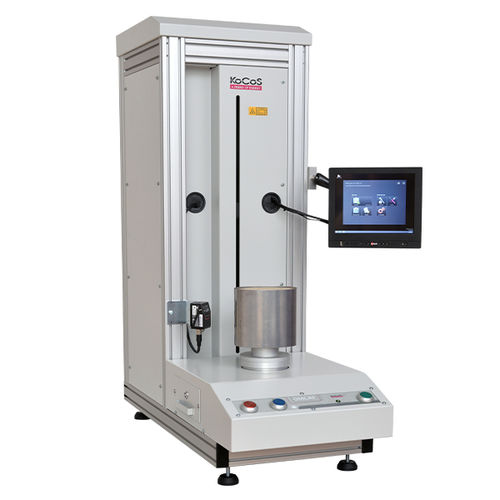

Geometry measuring device OMCAT series

LEDcatalyticfor control

Quality control and process control in production OMCAT 550 and OMCAT 600 measuring systems are designed to withstand the harsh conditions in manufacturing environments. Their robust construction guarantees longevity, while the use of maintenance-free components ensures high availability. Smooth and robust sheet steel panelling without nooks and crannies makes for easy cleaning. Maintenance access points with several access levels for connections, electronics and the rotary stage allow easy access for maintenance and servicing. The measurement functions are controlled using ergonomically designed robust push buttons. These large, metal push buttons are specially arranged for intuitive operation. They are guaranteed for 10 million switching cycles and meet all the requirements of harsh manufacturing environments and 24/7 production. The measuring system is controlled with the OMCAT-Vision software which is optimised for operation using the function buttons and 10“ touch screen.
