Optical measuring system OMCAT series

laboratoryfor calibration

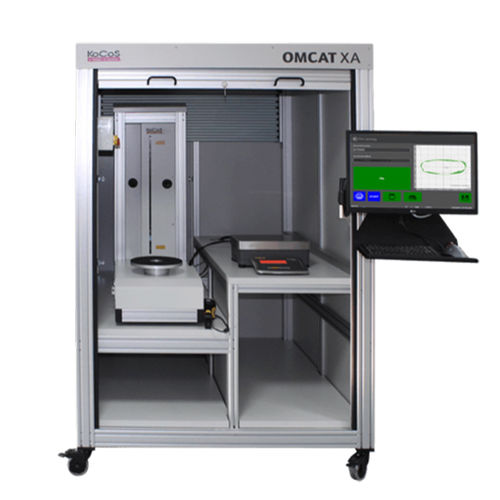

The solution for laboratory applications OMCAT XA5 and XA6 are featuring analytical, statistical and graphical tools which make itsuitable for use in development, process optimisation, quality assurance and the technological preparation of the manufacturing process. The system is equipped with a 22“ swivel monitor, mouse and keyboard. The parameters and measurement results are graphically displayed in detail on the large monitor, allowing comprehensive, detailed analyses. The OMCAT-Expert software, included in the scope of delivery, can be used to display measurement results in detail and to carry out all the measurement tasks required in a laboratory, e.g. the inspection of details during the development of new products. In order to guarantee optimum protection from dirt and unauthorized access, the system is integrated in a cabinet with a lockable shutter. The cabinet is fitted with castors and also provides enough space for optional peripherals, such as a label printer and weighing scales, as well as for SPC and calibration pieces. The screen can be swivelled into the cabinet so that it too can be stored behind the closed shutter.
