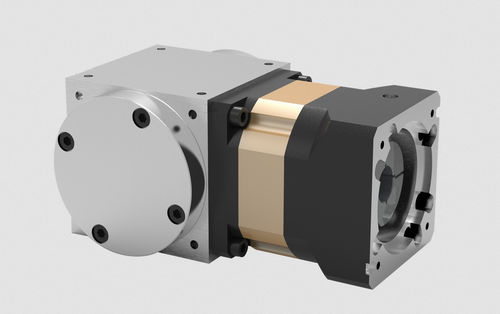

Spiral bevel gear reducer KT-FR1 sereis
right angle1 - 2 kNmsingle-stage

spiral bevel gear reducer
spiral bevel gear reducer
spiral bevel gear reducer
Add to favorites
Compare this product


Characteristics

Type
spiral bevel
Shaft orientation
right angle
Torque
1 - 2 kNm
Number of stages
single-stage, three-stage, two-stage
Performance
high-precision, high-performance, low-noise, low-backlash, high-efficiency, high-torque, maintenance-free, high-rigidity, high load capacity
Applications
transmission, industrial
Rotational speed

Min.: 1,200 rpm
(7,539.82 rad.min-1)

Max.: 6,000 rpm
(37,699.11 rad.min-1)

Power

Min.: 200 kW
(271.92 hp)

Max.: 5,000 kW
(6,798.11 hp)

Gear ratio

Min.: 1 unit

Max.: 400 unit

Description

KT-FR1 is our highly successful high precision gearbox series. Integration of aluminun body to ensure the maximum rigidity and corrosion resistance, and easy to assemble with multiple precision machined surface. The use of top-level sprial bevel gear, with optimization design, the contact tooth surface of uniform load、allowable hith torque out put. Gear is made of high strength alloy steel carburizing, grinding precision accorded with the standard of ISO 6. The design of multiple alloy steel output and input shaft applies to various industrial requirements. Spiral bevel gear set of high precision grinding can achieve 400:1 ratio. The simplified structure design with high torque and low backlash applies to applications of precision servo. With maintenance-free, no need to replace the grease and long service life. Options - Output shaft key way, without key be available. - Synthetic lubrication grease, low temperature grease available. - Adaptor flange solution available. Features - High precision spiral bevel gearing and powerful stability. - High efficiency and low noise control. - Long distance operation service lifetime. - Optimized inertia moment. - Limited temperature rise. - Flexible input mounting dimensions. - Maintenance free for whole service.
