Spiral bevel gear reducer KT-FC series
right anglehollow-shaft20 - 50 Nm

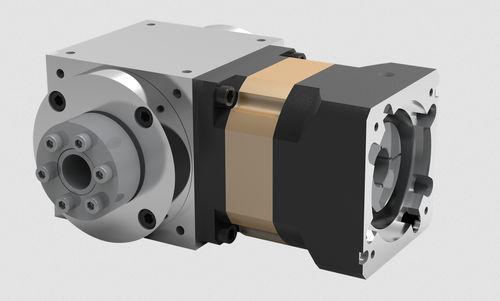

Spiral bevel gear reducer - KT-FC series - KOFON Motion Group - right angle / hollow-shaft / 20 - 50 Nm
Spiral bevel gear reducer - KT-FC series - KOFON Motion Group - right angle / hollow-shaft / 20 - 50 Nm
Spiral bevel gear reducer - KT-FC series - KOFON Motion Group - right angle / hollow-shaft / 20 - 50 Nm - image - 2
Add to favorites
Compare this product
Go to the KOFON Motion Group website for more information

Characteristics

Type
spiral bevel
Shaft orientation
right angle
Shaft configuration
hollow-shaft
Torque
20 - 50 Nm, 100 - 200 Nm, 200 - 500 Nm, 50 - 100 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm
Configuration
flange
Performance
high-precision, low-backlash, maintenance-free
Applications
transmission, industrial
Rotational speed

Max.: 6,000 rpm
(37,699.1118 rad.min-1)

Min.: 1,200 rpm
(7,539.8224 rad.min-1)

Backlash

Max.: 0.28 °

Min.: 0.1 °

Gear ratio

Max.: 100 unit

Min.: 1 unit

Weight

Max.: 115.2 kg
(253.97 lb)

Min.: 4.4 kg
(9.7 lb)

Description

Integration of aluminun body to ensure the maximum rigidity and corrosion resistance, and easy to assemble with multiple precision machined surface. The use of top-level spiral bevel gear, with optimization design, the contact tooth surface of uniform load、allowable hith torque out put. Gear is made of high strength alloy steel carburizing, grinding precision accorded with the standard of ISO 6. The design of multiple alloy steel output and input shaft applies to various industrial requirements. Spiral bevel gear set of high precision grinding can achieve 400:1 ratio. The simplified structure design with high torque and low backlash applies to applications of precision servo. With maintenance-free, no need to replace the grease and long service life. Options - Synthetic lubrication grease, low temperature grease available. - Adaptor flange solution available.
