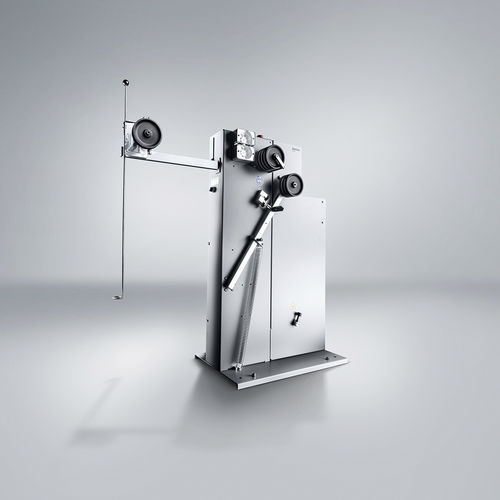

Cable feeding system F1110

automatic

Wire feeding for demanding containers reliable and gentle on materials Intelligent software for maximum performance • - Maximum throughput due to active synchronization of machine and process • - Automatic adjustment of the software parameters (self-learning system) • - Stops extremely quickly when knots are detected in wires Quick and easy setup and changeover • - Quick wire change due to the storage arm’s separate loading/unloading positions • - Optimized unloading position of the storage arm after the job is completed • - Adjustable pretension for wires with a large cross section • - Fully electric – no compressed air required Extremely ergonomic and user friendly • - Reliable dereeling, even for complex wire bundles and from wire racks • - Integrated wire end detection with automatic stop • - Machine wire line at optimal working height for the operator • - Speed of up to 6 m/s can be adjusted directly on the prefeeder The F1110 is a sophisticated wire feeding system for the fully automatic wire processing machines in the Alpha and Gamma ranges. Loose coiled wire, wire drums or small wire reels can be unwound easily and consistently. The prefeeder is fully integrated into the main machine’s software via EtherCAT and can communicate with it. This synchronization helps to ensure that maximum output can be achieved at all times. Short changeover times Thanks to a range of mechanical and ergonomic optimizations, the changeover time has been reduced significantly in comparison to predecessor models. For example, a swivel arm with a loading and unloading position is available for feeding wire in and out.
