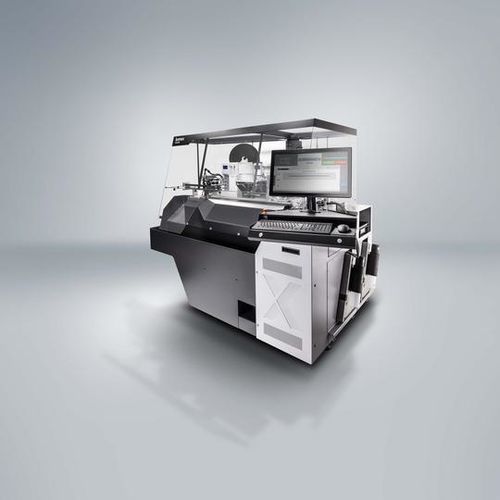

Cable crimping machine Zeta 620 G2

automaticpneumaticcompact

Overview
The compact Zeta 620 G2 automates cabinet wiring. It processes wires with cross sections from 0.5 to 6 mm², supports up to 24 wire types, and offers seven ferrule options.

Highlights

• Cut Cabinet Wiring Time by 50% with Automated Processing
  The Zeta 620 G2 reduces time in cabinet construction. Ready-to-use, labeled wire bundles simplify assembly and help streamline the overall workflow.
• Reducing Labor Costs and Human Error
  With automated wire processing and labeling, untrained staff can be utilized, freeing experts for complex tasks. Automatic changeovers for up to 24 wire types maximize throughput.
• Compact Machine Design with Integrated Inkjet Marking
  The Zeta 620 G2 saves valuable floor space with a compact chassis and integrated inkjet marking. This design fits any facility, reducing footprint while maintaining high output.
• Automate Wire Lists with WIRE Mind
  The cloud software WIRE Mind turns manual wire lists into precise machine data. It eliminates planning errors and reduces manual effort and human error.
• Customizable Modules to Scale Production Flexibility
  The Zeta 620 G2 can be tailored to specific needs with flexible process modules for ferrules, ultrasonic compacting or tube marking to reduce waste and optimize costs.

Modular system — Peripherals & Marking / Process Modules (selected items)

• M1650 Tube — tube marking module that prints marker tubes and pushes them onto the wire; designed for machines in the Zeta 6x0 range.
• M1630 Jet — inkjet printer for fast, flexible line printing, operated directly via the machine control.
• IQJET — remotely controlled inkjet printer for fast, flexible printing and high uptime (initially available for Zeta 620 G2).
• AEH-LS — ferrule module crimps loose ferrules on pre-stripped wires; presence sensor monitors ferrule insertion.
• CM 04 Duo — sequenceable ferrule module crimps up to two loose ferrules with large cross-sections (4 and 6 mm²) on pre-stripped wires.
• CM 1/5 GS — ferrule module for up to five different ferrules on strap in different lengths.
• CM F20 — ferrule module for sequential processing of up to five ferrules on strap with trapezoidal crimp design.
• Schunk process module — enables ultrasonic compaction of wires as an alternative to ferrules.

Technical data (key values)
Shortest wire length for one-sided processing: 60 mm
Shortest wire length for two-sided processing: 240 mm
Wire length (standard tray) max.: 4000 mm
Strip length side 2 max.: 25 mm
Strip length side 1 max.: 25 mm
Wire outer diameter max.: 6 mm

Caractéristiques / spécifications techniques

• Wire cross section range: 0.5 to 6 mm²
• Up to 24 wire types supported
• Seven ferrule options available
• Integrated inkjet marking
• Compact chassis to save floor space
• Cloud software integration: WIRE Mind for converting wire lists into machine data
• Modular design to add peripherals and process modules (ferrules, tube marking, ultrasonic compacting, etc.)
• Typical application: cabinet wiring / harness manufacturing
