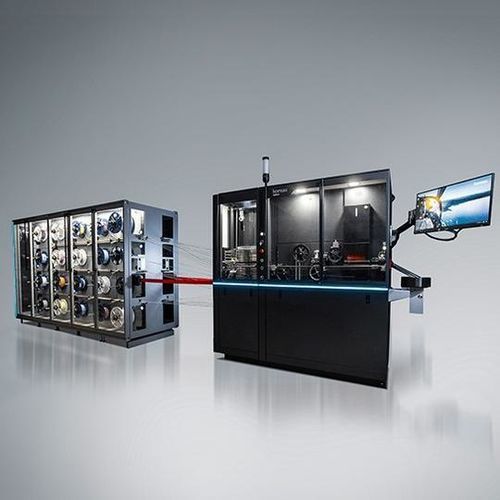

Wire cutting machine Optima 400

UV laserfor plasticscable

Overview
Ideal for medium to high production volumes, the Optima 400 automates wire cutting and UV laser marking for harness and cable production, improving throughput and part harness traceability in aerospace and industrial applications.
Ambient operating temperature: + 15 °C to + 30 °C (59 – 85°F)

Modular design
The Optima line is structured into essential, upgradeable modules that can be added over time to match technical requirements and investment plans. A broad range of options and accessories increases automation and reliability.

User interface and ergonomics

• New HMI with touch screen on an adjustable arm
• Sliding door for full access
• Wire feeding assistance
• LED indicators for machine status

Smart features

• Automatic feeding system and production modes
• Label printing and traceability functions
• Integrated waste management

Marking technology
UV laser marking produces a reaction within the wire insulation, delivering a clear, safe and permanent mark that remains unaltered over time (unlike hot stamping).

Processing capabilities

• Cutting to length
• UV laser marking of insulation
• Label printing and traceability

Technical data (summary)
Optima 400
Ambient conditions: 15 - 35 °C (59 - 95 °F)
Wire outer diameter min.: 0.8 mm
Wire outer diameter max.: 8 mm
Electrical connection: 1 x 200–240 V 50/60 Hz; 1.2 kVA
Compressed-air connection: 6 bar
Humidity, non-condensing: < 80 %

Technical specifications

• Application: Harness and cable manufacturing — automated cutting and UV laser marking for medium to high volumes
• Marking technology: UV laser for permanent marking in insulation
• Modularity: Essential functions expandable over time; wide range of options and accessories
• Operator interface: HMI touch screen on adjustable arm
• Access: Sliding door for full access
• Handling aids: Wire feeding assistance; automatic feeding system
• Traceability & printing: Label printing and traceability features available
• Waste management: Integrated waste management option
• Ambient operating temperature: 15 - 30 °C (59 - 95 °F)
• Wire OD range: 0.8 mm — 8 mm
• Electrical: 1 x 200–240 V, 50/60 Hz; 1.2 kVA
• Compressed air: 6 bar
• Humidity (non-condensing): < 80 %
