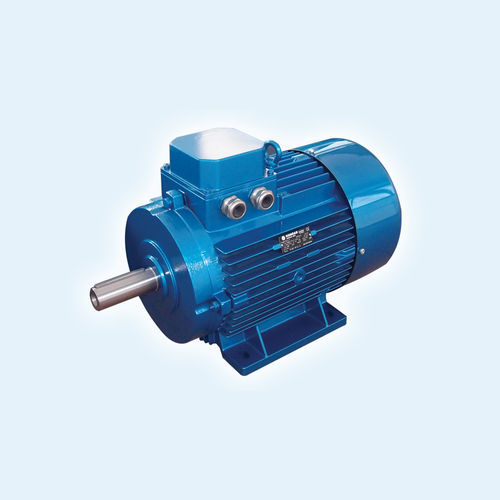

Asynchronous motor IECthree-phase400 Vcast iron
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Voltage
- 400 V
- Configuration
- cast iron, squirrel cage, squirrel-cage rotor, with brake, TEFC, cast iron frame, TENV, TEAO, TEFC
- Protection class
- IP55, IP54, IP65, IP66, IP56, IP67
- Efficiency classes
- IE3, IE2, IE4, IE1
- Number of poles
- 4-pole, 2-pole, 6-pole, 8-pole, 4/8 poles, 2/4 poles, 4/6 poles
- Cooling mechanism
- IC411, IC416, IC410, IC418
- Applications
- for industrial applications, for pump, for conveyors, for the chemical industry, for fans, for cranes, for marine applications, for the food industry, for centrifugal pumps, for winches
- Other characteristics
- low-voltage, custom, high-performance, standard
- Power
Max.: 200 kW
(271.92 hp)Min.: 0.06 kW
(0.08 hp)- Intensity
Max.: 370 A
Min.: 0.25 A
- Torque
Max.: 1,410 Nm
(1,039.96263 ft.lb)Min.: 0.3 Nm
(0.221269 ft.lb)- Rotational speed
Max.: 3,600 rpm
(22,619.4671 rad.min-1)Min.: 750 rpm
(4,712.389 rad.min-1)- Diameter
Max.: 200 mm
(7.87 in)Min.: 56 mm
(2.2 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Our range of low-voltage three-phase asynchronous squirrel-cage motors, featuring a fully enclosed design with fan cooling (IC 411), is widely employed in diverse industrial and marine applications.
Designed to meet the stringent requirements of modern drive technologies, their modular structure ensures they can be easily tailored to various customer specifications. Our motors are developed and certified to energy efficiency levels IE3 and IE4, following the EN 60034-30-1 standard.
Main features:
Low-noise design with minimal vibration
Superior energy efficiency and nearly complete recyclability
Consistent, dependable performance, even in demanding environments and tough working conditions
Built with top-grade materials for enhanced durability
Long-life bearings with extended lubrication cycles
Protective coating resistant to weathering and corrosion
High-performance insulation system designed for compatibility with frequency converters
