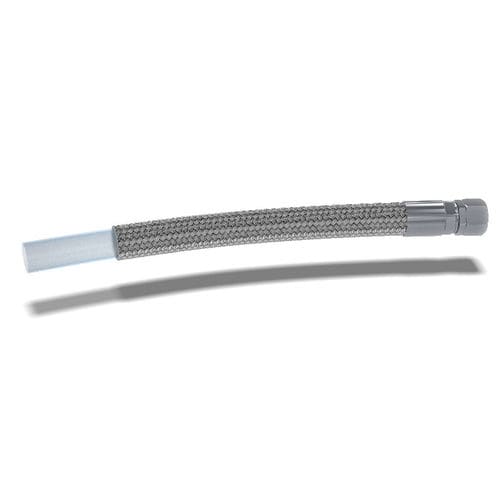

Hydraulic hose TSHV
transferfor chemical applicationsfor pharmaceutical applications

hydraulic hose
hydraulic hose
Add to favorites
Compare this product

Characteristics

Use
hydraulic
Applications
transfer, for chemical applications, for pharmaceutical applications, for automotive applications, for the food industry
Material
rubber, PTFE
Other characteristics
smooth, anti-static, standard, stainless steel-braided
Inner diameter

Min.: 6.7 mm (0.264 in)

Max.: 26.1 mm (1.028 in)

Outer diameter

Min.: 10.06 mm (0.396 in)

Max.: 29.45 mm (1.159 in)

Pressure

Min.: 0 bar (0 psi)

Max.: 689 bar (9,993.1 psi)

Temperature

Min.: -60 °C (-76 °F)

Max.: 260 °C (500 °F)

Description

Kongsberg Automotives Smoothbore Metric Range is designed to accept standard hydraulic tailed fittings. The ID of the hoses are made slightly larger than the Imperial Range to help reduce the insertion force required to make assemblies. The Metric hose range helps Hydraulic rubber users reduce their inventory by only needing to stock one fitting to suit all hoses. Features - Benefits Applications - Used globally in the Industrial, Chemical, Pharmaceutical, Automotive and Food industries when lesser hoses can’t cope with the temperature, pressure, cleanliness or flex fatigue. Inner layer construction - Medium wall smoothbore PTFE tube - PTFE according to “ISO12086, Part 1.PTFE-E.P.D.M 1.6.1.C.E.4_12” Outer Layer construction - High tensile 304 maypole wound Stainless Steel braid Temperature range - -60°C to +260°C (-76°F to +500°F) Ferrule range available - No Fitting range available - Not at present Other - Antistatic liners are available for the Metric range for when electrically resistive fluids are being transferred at high flow rates. Both two wire braid, 316 stainless steel braid and Heavy Wall derivatives are available for this range.
