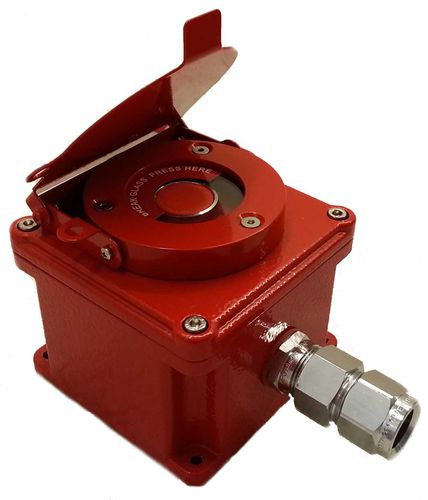

Explosion-proof manual call point UCS A series

fire alarmATEXwith glass breaker

Fire alarm station (UCS...A), ATEX (Exde) model of protection, provided with hammer for breaking the glass in case of emergency, or without glass and hummer. The fire alarm station is available in ten modes of operation: 1 - Automatic: (single action) The contacts are activated automatically with the breaking of the glass. 2 - Manual: (double action) The contacts must be operated by pressing the button after breaking the glass. 3 - Automatic: (double action) The contacts are activated automatically raising the flap and breaking of the glass. 4 - Manual: (triple action) The contacts must be operated raising the flap breaking the glass and pressing the button. 5 - Manual: (single action) The contacts must be operated pressing the button (version without glass). 6 - Manual: (double action) The contacts must be operated raising the flap and pressing the button (version without glass). 7 - Manual: (double action) The contacts must be operated by pressing the button (push-push) after breaking the glass. 8 - Manual: (triple action) The contacts must be operated raising the flap breaking the glass and pressing the button (push-push). 9 - Manual: (single action) The contacts must be operated pressing the button (push-push) (version without glass). 10 - Manual: (double action) The contacts must be operated raising the flap and pressing the button (push-push) (version without glass)
