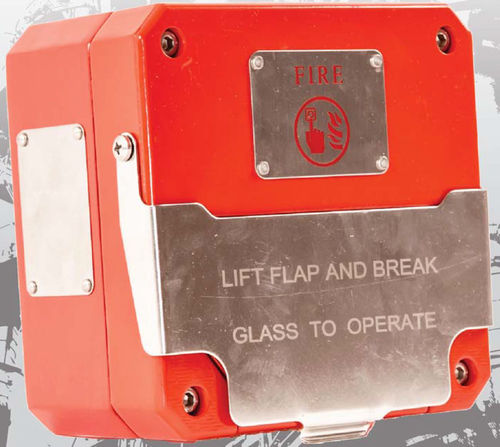

ATEX manual call point KCP135

for marine applicationsfor offshore applicationsfor the oil and gas industry

This manual call point “break glass” type is designed for corrosive environments and dedicated for the Oil & Gas, chemical, petrochemical, pharmacy industries, marine and offshore applications. The product is compatible with PLC, ESD, DCS systems via an output 4-20mA. The housing moulded in glass-reinforced polyester is dyed in the mass and protected with a UV resistant paint. Optionally: visualisa1ion functions, line detection, glass protection and hammer. Other accessories to customize the products are available. MATERIAL ENCLOSURE: Glass-reinforced polyester (GRP) COLOR: RED: RAL3001 – YELLOW**: RAL1018 – BLUE**: RAL5005 – BLACK**: RAL9004 – BLACK WITH YELLOW ZEBRA** IP RATING: IP66 AMBIENT TEMPERATURE: -40°C +70°C CERTIFICATES: ATEX – IECEX MARKING: II2GD Exd IIB+H2 T6 Gb Ex tb IIIC T85°C (Tamb = -40″C…+70°C) AMBIENT HUMIDITY*: UNTIL 95% WITH ICE RATE IMPULSE WITHSTAND VOLTAGE: lkV according to IEC 61000-4-5 CONTACT TYPE: 1 x C/O or 2 x C/O** CONVENTIONAL THERMAL COURANT (lth): AC 125/250V (50/60Hz)=11A*** ; 30V DC=6A*** ; 125V DC=0.3A*** MINIMUM VOLTAGE AND COURANT: DC 5V l0mA SHORTS CIRCUIT PROTECTION: lOA gG CABLE ENTRIES: 2xM20, M25**, l/2″NPT**, 3/4″NPT or other**(Specify) TERMINAL: From 22 to 14AWG – From 0.5mm2 to 2.5mm2 NET WEIGHT: 1.5kg LINE RESISTOR**: 470 Ohms SIGNALLING LED**: Green U=24V DC I= lOmA ; Red U=24V DC I= 20mA *=without runoff – **=optional – ***=resistive load – coble gland and blind plug not provided
