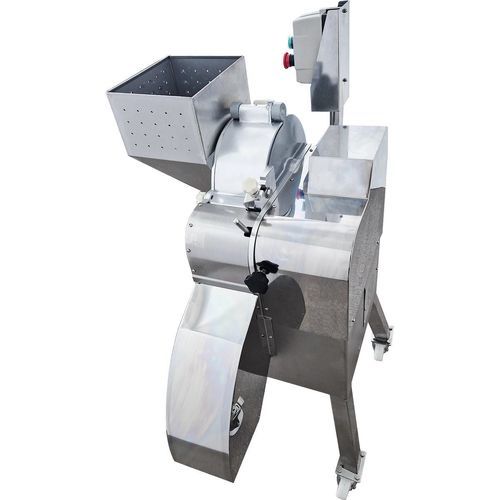

Vegetable dicer D800

for fruitfor fruits and vegetablesstainless steel

Product overview
The DC800 is designed to cut vegetables and fruits into cubes, strips or slices by rotating the product in an aluminum cylinder using centrifugal force against fixed cutting knives. Cutting thickness is adjustable via interchangeable knife/disc combinations from 3 to 25 mm. The machine is intended for high-volume production and fast reconfiguration between cut types; removing one knife produces strips and leaving a single knife produces slices.

Benefits and Features

• Productivity: 300–800 kg/h depending on cut thickness.
• Materials: Food-grade stainless steel AISI 304 contact parts; aluminum rotation cylinder.
• Mobility: Two fixed and two swivel wheels with locks for transport and stable positioning.
• Maintenance: Motor in a separate block enabling machine washing with water to speed up end-of-production cleaning.
• Operation: Removable discs/knives with a special key for quick tool changes (typical changeover 1–5 minutes).
• Cut range: 3–25 mm by combining/removing knives.
• Suitable products: potatoes, carrots, beets, mushrooms and other fruits & vegetables.

Technical information (table)
Productivity: 300–800 kg/h
Electric power: 1.2 kW
Electric connection: 220V / 380V (standard noted as 400 V / 50 Hz / 3 phases; other options available including 110 V; 50–60 Hz variants offered)
Discharge height: 370 mm
Dimensions (L×W×H): 1273 × 700 × 877 mm
Weight: 80 kg

Additional notes
Transportation (packed) dimensions: 800 × 600 × 1500 mm. Blade/disc changeover time: typically 1–5 minutes. Some spare parts are standard and locally sourceable; manufacturer-supplied parts largely available from stock. Electrical connection options available on request.

Applications and examples

• Cutting potatoes into cubes for fries or frozen products.
• Preparing carrots, beets, mushrooms and other vegetables into slices, strips or dices.
• Processing fruits where cube/strip/slice cuts are required.

Specifications / technical details

• Model: DC800
• Productivity: 300–800 kg/h
• Cut sizes: 3–25 mm (by knife/disc combinations)
• Power: 1.2 kW
• Electrical options: 110V / 220V / 380V / 400V, 50–60 Hz, 2 or 3 phases
• Discharge height: 370 mm
• Dimensions: 1273 × 700 × 877 mm
• Weight: 80 kg
• Materials: AISI 304 stainless steel; aluminum rotation cylinder
• Mobility: 2 fixed + 2 swivel wheels (locking)
• Maintenance: motor in separate block allows washing with water
• Blade/disc change time: approx. 1–5 minutes
• Transport dimensions (packed): 800 × 600 × 1500 mm
