analysis microscope / for research / biomedical / measuring
MSZ5000

Add to MyDirectIndustry favorites
Compare this product
analysis microscope / for research / biomedical / measuring analysis microscope / for research / biomedical / measuring - MSZ5000
{{requestButtons}}

Characteristics

  • Technical applications:

    for analysis, for research, biomedical, measuring, educational, inspection, for materials research, for materials inspection, medical, for materials analysis, for dermatology, for forensics

  • Type:

    optical

  • Ergonomics:

    benchtop, compact, binocular, trinocular

  • Observation technique:

    bright field, dark field

  • Other characteristics:

    LED illumination, digital camera, high-resolution, zoom, long working distance, ergonomic, real-time, cost-effective, high-definition, multipurpose, with special lighting, workshop, high-precision, simple installation, for quality control, sliding-stage, for flat samples, high-magnification, with light intensity manager, ultra-high resolution, high-contrast

  • Magnification:

    Max.: 90 unit

    Min.: 7 unit

    45 unit

Description

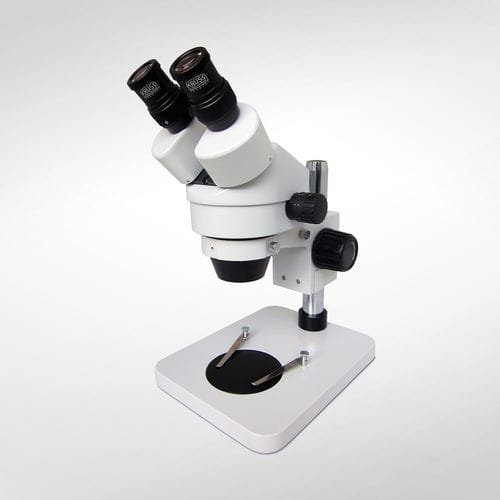

A robust zooming stereo microscope for the professional examination of electronics, precision engineering, plastics and medical products. The microscope is used for inspection, assembly, analysis, for soldering and polishing and finishing – an excellent tool for quality control. The large zoom range, large working distance and broad depth of field facilitates very comfortable work in many areas. It offers continuously variable magnification with 7– 45x total zoom. The rugged metal housing makes it easier to work with reliability, even in harsh environments. Accessories include various eyepieces and auxiliary lenses to modify the magnification and working distances.

•Zoom feature for continuous magnification settings
•Large depth of focus
•Incident and transmitted light (depending on configuration)
•45° inclined viewer piece
•dioptre adjustment on both sides
•Eye-distance adjustment 51–75 mm
•Range of vision 20 mm, object field 28.6–4.44 mm
•Working distance Approx. 90 mm
•Power supply: 230 V, option with 115 V available
