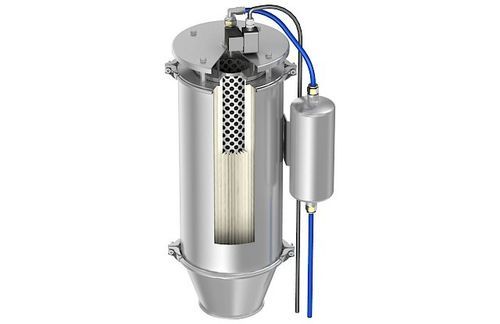

Air filter JetFilter 250

dustcartridgepolyester

Overview
The JetFilter 250 filters displaced air during hopper refill, vents cleaned air to the environment and returns captured dust to the process to prevent ingredient losses.

Application
Designed for use with loss-in-weight feeders, the JetFilter 250 controls dust emission during refill operations and ensures recovered material is returned to the feeder.

Filter and operation

• Filter cartridge with polyester fleece media compliant with FDA and GMP
• Automatic pulse-jet cleaning using compressed air dislodges trapped dust from the cartridge
• Collected dust falls back into the hopper/feeder, minimizing product loss
• Available models suitable for hoppers up to 1000 dm³ (35.3 ft³)

Technical specifications

• Function: Filtering displaced air during hopper/refill operations for loss-in-weight feeders
• Filter media: Polyester fleece (FDA and GMP compliant)
• Cleaning: Automatic compressed-air pulse-jet cleaning
• Dust handling: Captured dust returned to the feeder to avoid ingredient loss
• Model range: Versions for hoppers up to 1000 dm³ (35.3 ft³)
