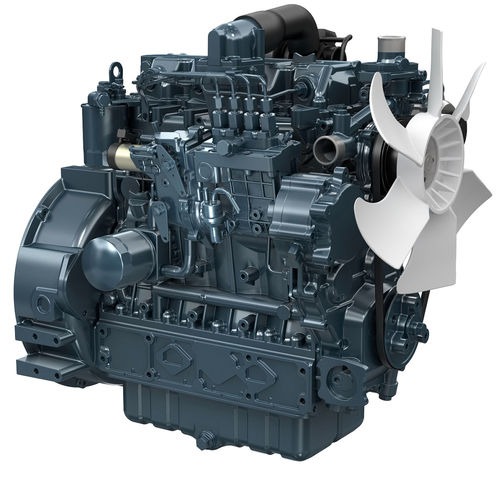

Diesel engine V3800DI-T-E-BG series
4-cylinderturbochargeddirect fuel injection

Diesel engine - V3800DI-T-E-BG series - KUBOTA Engine - 4-cylinder / turbocharged / direct fuel injection
Diesel engine - V3800DI-T-E-BG series - KUBOTA Engine - 4-cylinder / turbocharged / direct fuel injection
Diesel engine - V3800DI-T-E-BG series - KUBOTA Engine - 4-cylinder / turbocharged / direct fuel injection - image - 2
Diesel engine - V3800DI-T-E-BG series - KUBOTA Engine - 4-cylinder / turbocharged / direct fuel injection - image - 3
Diesel engine - V3800DI-T-E-BG series - KUBOTA Engine - 4-cylinder / turbocharged / direct fuel injection - image - 4
Add to favorites
Compare this product

Characteristics

Type
diesel
Number of cylinders
4-cylinder
Technology
turbocharged, direct fuel injection, in-line
Product applications
for generator sets
Emissions level
Tier 2, Stage III
Other characteristics
4-stroke, water-cooled
Power

Max.: 52.3 kW
(71.11 hp)

Min.: 38.8 kW
(52.75 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,424.778 rad.min-1, 11,309.7336 rad.min-1)

Weight

290 kg
(639.34 lb)

Description

Specifications are subject to change without notice. Dimensions and dry weight are according to Kubota's standard specification. Dimensions and weight depend on completed specifications. *1: SAE J1349 net stand-by *2: SAE J1349 net continuous *3: Exclude cooling fan and exclude aftertreatment unit *4: Exclude cooling fan and include aftertreatment unit on engine
