Diesel engine V2003-T-E2-BG series
4-cylinderturbochargedin-line

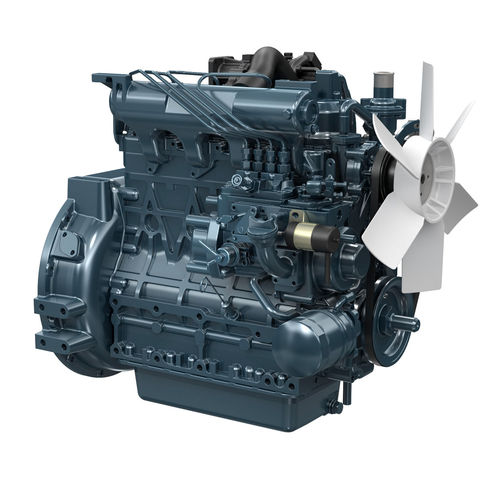

Diesel engine - V2003-T-E2-BG series - KUBOTA Engine - 4-cylinder / turbocharged / in-line
Diesel engine - V2003-T-E2-BG series - KUBOTA Engine - 4-cylinder / turbocharged / in-line
Diesel engine - V2003-T-E2-BG series - KUBOTA Engine - 4-cylinder / turbocharged / in-line - image - 2
Add to favorites
Compare this product

Characteristics

Type
diesel
Number of cylinders
4-cylinder
Technology
turbocharged, in-line
Product applications
for generator sets
Emissions level
Tier 2, Stage III
Other characteristics
4-stroke
Power

Max.: 24.5 kW
(33.31 hp)

Min.: 20.4 kW
(27.74 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,424.778 rad.min-1, 11,309.7336 rad.min-1)

Displacement

1.999 l
(0.528 gal)

Weight

208 kg
(458.56 lb)

Length

83 mm
(3.3 in)

Width

92.4 mm
(3.6 in)

Height

3.3 mm
(0.1 in)

Description

Specifications are subject to change without notice. Dimensions and dry weight are according to Kubota's standard specification. Dimensions and weight depend on completed specifications. *1: SAE J1349 net stand-by *2: SAE J1349 net continuous *3: Exclude cooling fan and exclude aftertreatment unit *4: Exclude cooling fan and include aftertreatment unit on engine
