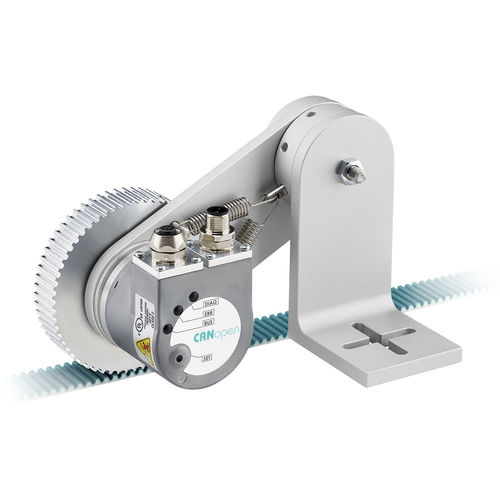

Length measuring instrument Limes KIT TB1

mechanicalhigh-speed

Simple mounting Flexible encoder spring arm Adjustable pressing force up to 40 N Steel-reinforced plastic toothed belt Speed 5 m/s Limes Kit TB is a flexible length measuring set for measuring positions and speeds. The complete system is easy to install and compensates for unevenness or installation tolerances within the application. The length measuring set is available in numerous variants and can be adapted to your specific application requirements. Our Sendix encoder portfolio also offers the right interface for every requirement. Both incremental and absolute encoders can be used. Versatile Large measuring range (up to 400 m). Can be used linearly or rotatively. Incremental or absolute measurement. All common / field bus interfaces. Application-specific adaptation of the encoder spring arm (adjustable contact pressure). Compensation of application tolerances. Robust and cost-efficient Simple mounting. Steel-reinforced plastic toothed belt. Robust Sendix encoders. Wide temperature range -10°C to +80°C. High travel speed of up to 5 m/s.
