Magnetic coil ferrite coreinductiveSMD
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic, ferrite core
- Electrical characteristics
- inductive
- Configuration
- SMD
- Applications
- high-temperature
Description
The production of micro coils with magnetic cores is one of KUK's specialities. We have established a great deal of know-how in handling windings directly onto magnetic cores - with a wide variety of wires that are invisible to the naked eye.
Our specialities in the manufacturing process include lines for the direct winding on magnetic cores to micro coils:
Winding baked, varnished
Protected by shrink sleeve
Sealed in protective tubes
Winding end reinforced, twisted
Tin-plated leads

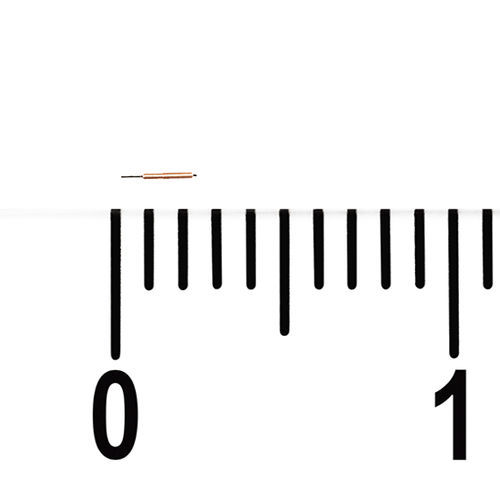

Micro coil / miniature coil with diameter starting at 0.3 mm
Bonding on chip
SMD
Various fine wires can be applied for the production of a micro coil.
Wire diameter starting at 0.010 mm
High temperature
High-tension wires
High-precision miniature winding equipment
Accurate mechanical dimensions
Own tool-making shop
Accurate electrical values (L, R, Q)
Highly bred materials
APPLICATIONS
Sensors for medical devices
RFID
Hearing aids
Inductive sensors
Voice coils
PACKAGING
Trays
Blister reels
