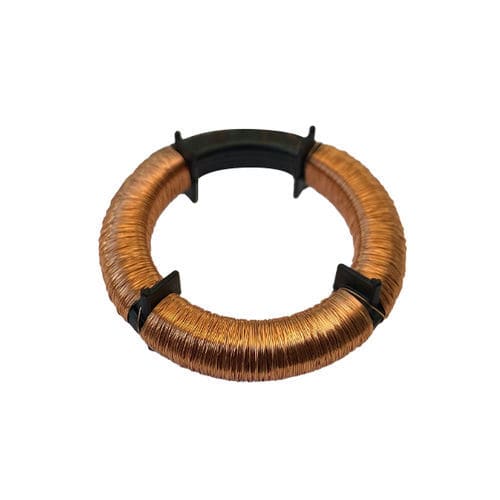

Toroidal coil

filterinsulatedswitching

KUK manufactures customer-specific toroidal core coils with an inner diameter from 3 mm. The core is mainly ferrites from 1.5 mm. Toroidal core coils are used by our customers for switching power supplies, chokes, transformers and many other applications. KUK produces your toroidal coil in a wide range of variants: Bifilar/multiple windings Tin-plated ends With strands and connectors Housing SMD/pins Varnished/sealed Dimensions from 3 mm A wide range of wires is used depending on your customer-specific requirements: Varnished copper wires RF strands Insulated strands Silk covered copper wire, served litz wire (silk, nylon) KUK has extensive experience in the winding of toroidal cores in various sizes Ferrites from 1.5mm Soft magnetic powder Soft magnetic tape wound cores Miniaturisation Ferritic materials Support for specification of chokes, transmitters, transformers Toroidal core winding equipment APPLICATIONS Switched-mode power supplies Smoothing and filter chokes Radio interference suppression Oscillating circuits Pulse and broadband transmitters Transformers, inductances PACKAGING Trays
