Chamber oven

rotaryelectrichot air

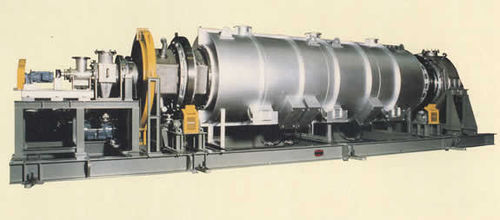

This machine is an indirect heating type of rotary kiln using electricity, heavy oil, or gas as the heat source. The shell, due to its equilateral hexagonal cross section, minimizes the "shear" of the material layer to provide a sharp distribution of residence time, enabling you to get stable and high quality products of uneven firing. Features Equilateral hexagonal shell employed (Refer to Figure-1.) Compared to cylindrical shell, this shall provides less "shear" of the material layer, a sharp distribution of residence time, and less uneven calcining, increasing the material holding ratio to make the equipment compact in size. Introduction of superb air sealing performance and special sealing construction enables sealing up to a maximum of pressure of kiln internal pressure±500Pa. Besides oxidized (i.e., in the air) or neutral (i.e., nitrogen gas or carbon dioxide gas) gas, reducing gas can be used. Carrier gas or reaction gas can be charged thanks to the improved sealing performance. Severe calcining temperature control enabled The calcining temperature is directly measured with sheathed thermocouples inserted in the material layer. Introducing the multi-chamber type of electric furnace enables independent temperature control of each chamber. The material temperature is selectable up to a maximum of 1000ºC. Furthermore, if you use gas or heavy oil as the heat source, please introduce the hot air circulation system for energy savings. Easy settings of residence time The shell speed varies with the use of the variable speed motor (10:1). Furthermore, variable inclination system is also available for the shell.
