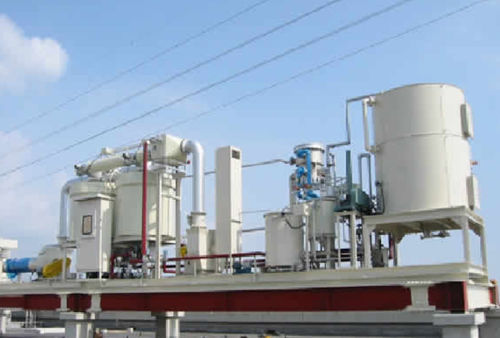

Solvent recovery system

The Kurimoto Solvent Recovery System is a fixed bed type of flue gas treatment equipment using granulated active carbon, which has been developed for the purpose of recovering organic solvent contained in the flue gas. By passing the solvent-containing gas through the granulated active carbon layer, the solvent is adsorbed to the active carbon to exhaust clean air. By blowing vapor into the active carbon layer after the solvent is adsorbed, the solvent is isolated from the active carbon, and recovered after condensation and separation. Features Providing a high degree of elimination efficiency. Supporting for large changes in inlet concentration. Trouble-free operation. A large amount of know-how and extensive experience. Enabling treatment in the range from small capacity to large capacity. Less running costs, compared to other solvent recovery systems. Use Chlorine base organic solvent Solvent and monomer generated from solution polymerization lines. Industrial cleaning agent such as methylene chloride, trichloroethylene, and tetrachloroethylene Chlorofluorocarbon base solvent Heat insulation chlorofluorocarbon (CFC-11and HCFC-141b) CFC-113 Hydrocarbon base organic solvent Non water base Benzene, toluene, xylene, styrene, naphtha, kerosene, heptane, and others Water base Methanol, ethanol, acetone, methyl ethyl ketone, propanol, methyl acetate, ethyl acetate, butyl acetate, and others
