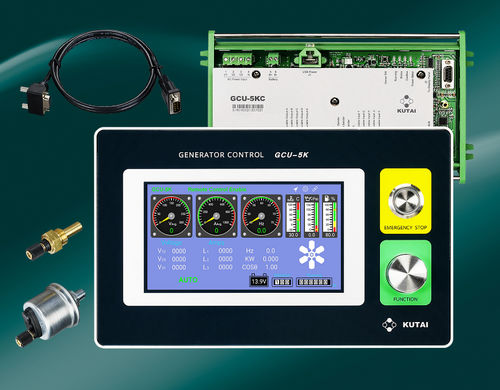

Universal genset controller GCU-5K

digitalprotection moduleIoT

The GCU-5K is an advanced Auto Start Generator Control Unit and Protection Module equipped with IoT technology, enabling remote monitoring and control. It offers up to 18 generator power measurement readings in both digital and graphical needle meter formats. Users can remotely monitor and control the generator via their smartphones by downloading the Free App GenOnCall®. GCU-5K provides complete control and protection features for both electronic Engine (SAE J1939), non-electronic (traditional) Engine, as well as diesel and natural gas engine generators currently available in the market. It's an innovative turnkey solution for standalone generators. Features ● 7’’ color LCD panel, screen resolution 800 x 480, waterproof rating IP65. ● Provides 18 power measurement parameters, with the screen displaying both numerical and analog meter display modes. The analog meter can be freely specified. ● Display interface options: Traditional Chinese, English, Japanese,Spanish. ● Built-in Wi-Fi for network connectivity for Free online firmware update anytime, no additional modules required. ● 5 user configurable DC outputs and 5 user configurable inputs. ● Optional Modbus-RTU / Modbus-TCP/IP / SNMP / Ethernet communication module is available. ● Free iOS and Android GenOnCall® App for user to download. ● Allows one operator and up to seven viewers to remotely operate,monitor the status, and adjust all relevant settings for the generator set via network access simultaneously. ● Using WPS, the GenOnCall® app can display precise generator location on the map and track status. ● Offer push notifications for Start / Stop / Fault messages and up to 250 event logs for queries.
