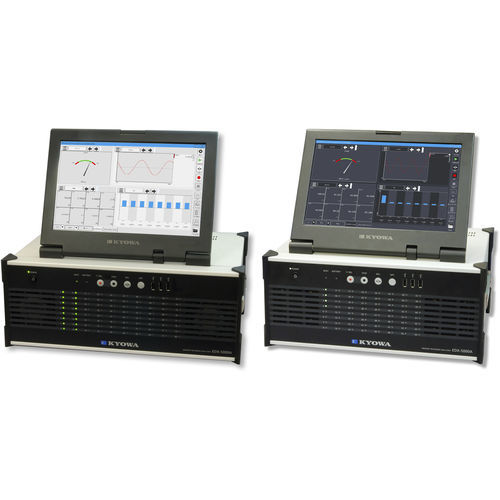

Strain measuring instrument EDX-5000 series

strain gaugeportableUSB

The EDX-5000A is an advanced all-in-one measuring instrument having sophisticated features and high-speed processing capabilities. The EDX-5000A is the highest-end model of the EDX series. The number of channels is max. 80 channels. The sampling frequency is max. 200k Hz with 32 channels. The EDX-5000A records the measured data and moving images synchronously and executes arithmetic processing (including rosette analyses) in real time.The touch panel allows you to control the EDX-5000A instead of using a keyboard. Features 1.Greatest accessibility The touch panel and intuitive software offer the greatest accessibility. 2.Various real-time processing functions The EDX-5000A records the moving images (high-speed camera data, etc.) and measured data simultaneously and indicates the measured results at the site for checking them efficiently. The EDX-5000A also executes arithmetic processing including the rosette analysis. 3.Multiple conditioner cards The EDX-5000A measures max. 80 channels by using conditioner cards (CDV-40B, CDA-40AS, etc.).
