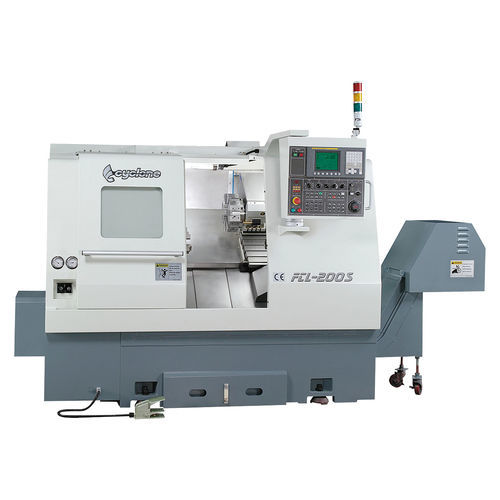

CNC lathe FCL serieshorizontal2-axis3-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis, 3-axis
- Other characteristics
- high-precision, milling, spindle
- Diameter
280 mm, 330 mm, 442 mm
(11.02 in, 12.99 in, 17.4 in)- Spindle speed
25 rpm, 2,800 rpm, 3,500 rpm, 4,200 rpm
(157.08 rad.min-1, 17,592.919 rad.min-1, 21,991.149 rad.min-1, 26,389.378 rad.min-1)- Maximum part length
430 mm, 462 mm, 700 mm
(17 in, 18 in, 28 in)- Bar capacity
51 mm, 65 mm, 77 mm
(2 in, 3 in, 3 in)- Axe X
142 mm, 180 mm, 250 mm
(6 in, 7 in, 10 in)- Axe Z
460 mm, 475 mm, 720 mm
(18 in, 19 in, 28 in)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
30,000 mm/min
(20 in/s)- Overall lenght
3,350 mm, 4,000 mm
(132 in, 157 in)- Overall width
1,575 mm, 2,000 mm, 2,100 mm
(62 in, 79 in, 83 in)- Overall height
1,800 mm, 2,000 mm, 2,130 mm
(71 in, 79 in, 84 in)
Description
Standard Accessories
•1/4 HP coolant pump (FCL-200S)
•3-bar-750w high pressure coolant pump
(FCL-250S, 250SL, 300S)
•100 liter capadty cooling tank
•Hydraulic turret
•Auto, lubrication system
•Tools & tool box
•Work lamp
•Three-color alarm light
•Hydraulic unit
•Heat exctianger unit of electnc box cooling
•Chip conveyor and bucket
•Programmable tailstock
Optional Accessories :
•C.E. electric control
•Auto tool setter
•Manual tool setter
•C-axis contour capability
Duplomatic SMODT, VDI, 12-position power
turret with Fanuc alpha spindle motor (Exduding
rotating tool holder and tools)
High resolution magnetic puise coder
incorporated into main AC spindle motor for
précision contour/index control
Hydraulic disk brake for locking and stabilization
during milling and contouring
Main power transformer
Auto door & safety switch
Auto parts catcher
Prevent crash install of each axis.
(Safety equipment)
Bar feed
Parts eut offdetector
Larger spindle motor
Larger hydraulic chuck
LS servo turret
Catalogs
FCL series
6 Pages
