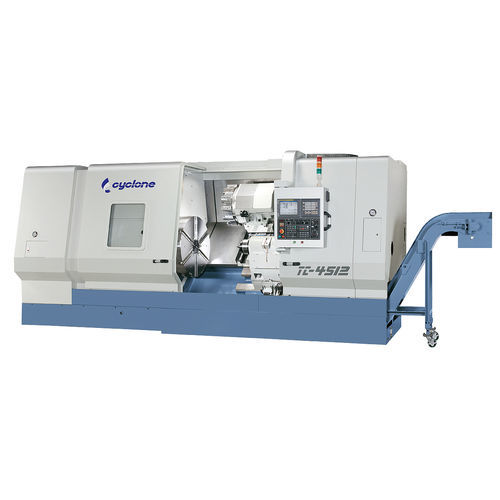

CNC lathe TC series

horizontal2-axisA2-8

The major machine parts, such as the base, saddle. headstock, slide and tailstock are made of Meehanite cast iron and tempered to relieve stress thereby ensuring lifetime accuracy. 45 degrees slant bed construction features efficient chip removal and firm support. Box guideways on X and Z axis, that is high précision and heavy-duty loading. High Rigidity and Stabilization of Entire Construction. Hi-rigid construction stands up bending and torsional force of heavy-duty cutting on large work-piece.(TC-25.TC-35R sériés) HYDRAULIC TURRET INDEXING A.Heavy-duty station tool turret is driven by low noise, high torque hydraulic indexing motor. B.Faster indexing tool turret with bi-direction random selection to the shortest path. achieves high productivity. FANUC CNC CONTROLLER User-friendly opérations are more convenient for users. MANUAL TAILSTOCK Designed for the machine stability when cutting workpieces. HYDRAULIC POWER UNIT The hydraulic power unit employs high quality components for long service life and stable motions. The and srable motions. The Unit delivers high pressure to the Brake and 3-Jaw
