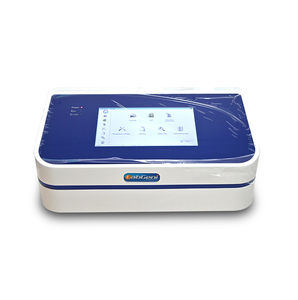

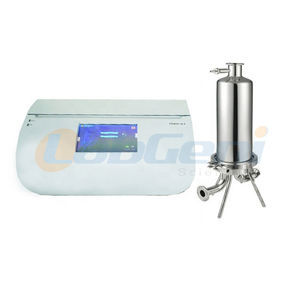

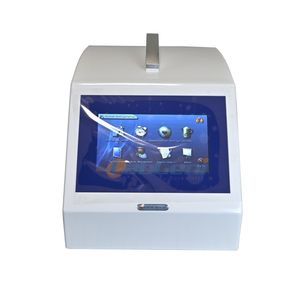

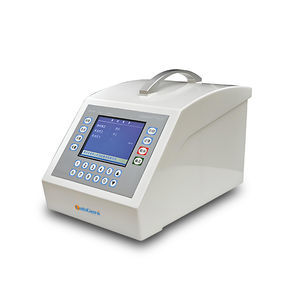

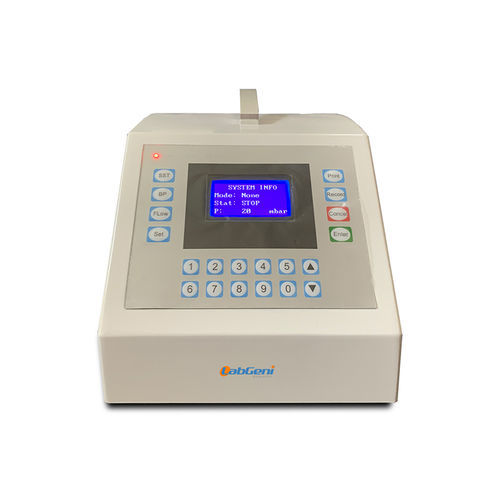

Pressure tester FIT-1.2

leakageintegrityperformance

Short description
Microcomputer-controlled instrument for automatic filter integrity testing. Supports bubble point scanning, fast bubble point, pressure-hold and diffusion current methods. Provides real-time printing and stores test results. Compatible with single-core and multi-core filters.

Performance parameters

• Model: FIT-1.2
• Power: 170–240 V AC, 50/60 Hz; typical consumption 85–100 W depending on variant
• Maximum operating pressure: 8000 mbar
• Minimum inlet pressure: 100 mbar
• Measuring range: 500–6900 mbar
• Measuring accuracy: Net Volume ±4%; Bubble Point ±50 mbar (variant ±75 mbar); Diffusion Current ±4%
• Operating conditions: Ambient temperature +5°C to +35°C; Relative humidity 10–80%
• Test durations: Net Volume ≈5 min ±2 min; Diffusion Current ≈10 min ±2 min; Simple Bubble Point ≈15 min ±2 min; Enhanced Bubble Point ≈20 min ±2 min; Bubble point scanning ≈20 min ±2 min
• Printing: real-time print of test parameters and results (Chinese printer variant)
• History: up to 500 test records with curves (variant: 20 records)
• Display: 5.7" TFT color (variant: 73 × 39 mm)
• Serial connection: RS232
• UI language: Chinese

Main characteristics

• Online testing without disturbing downstream aseptic conditions
• System self-check and error reporting for leaks and incorrect operation
• Microcomputer-controlled automatic detection with multiple test modes
• Real-time printing of test results
• Suitable for single-core and multi-core filters

Technical specifications

• Model (denomination): FIT-1.2
• Power requirements: 170–240 V AC, 50/60 Hz; 85–100 W
• Maximum operating pressure: 8000 mbar
• Minimum inlet pressure: 100 mbar
• Dimensions (examples): 400(W) × 380(D) × 100(H1) × 235(H2) or 240(W) × 380(D1) × 280(D2) × 220(H1)
• Measuring range: 500–6900 mbar
• Measuring accuracy details: Net Volume ±4%; Bubble Point ±50 mbar (variant ±75 mbar); Diffusion Current ±4%
• Operating conditions: +5°C to +35°C; 10–80% RH
• Printing and storage: real-time output of test parameters and results; variant-dependent printer and memory (up to 500 records)
• Display and interfaces: 5.7" TFT color (variant: 73 × 39 mm); RS232 serial port
