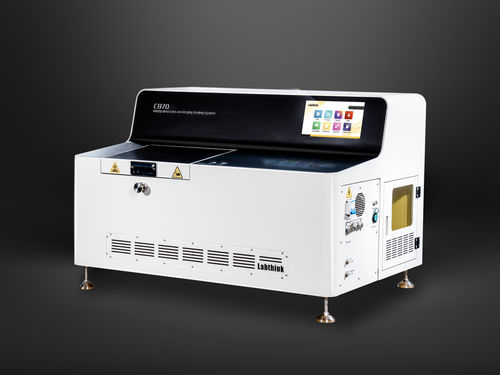

Mass testing system C870M

networksafetyoperational

Overview
C870M Integrated Loss-on-Drying Testing System is based on the gravimetric method and is designed and manufactured in accordance with pharmacopoeias and testing standards of the food and chemical industries. It is suitable for loss-on-drying testing in pharmaceuticals, food and chemical industries.

Product Features
Precise, Traceable, and Convenient Measurement

• Dual-chamber independent design achieves true separation of drying and weighing, avoiding the influence of high temperatures on the balance.
• Sample weight is automatically determined, avoiding interference from human factors.
• German-imported touch-screen electronic balance with repeatability up to 0.05 mg (optional).
• Visualized balance design and traceable data.
• Internal calibration balance for quick disassembly and easy measurement.

Safe and Compliant: Standardized Processes for Safer Operation

• Automatic cover opening and closing technology for test cups ensures a more compliant testing process.
• Automatic temperature adjustment for true room temperature weighing.
• Fully enclosed, zero-leakage test chamber prevents the leakage of hazardous gases.
• Nitrogen circulation and discrete electric control systems provide dual safety protection.
• The system is equipped with various sensors and intelligent audible and visual alerts for safer operation.

Intelligent and Efficient: Fully Automated Processes, Saving Time and Space

• Equipped with a fully automatic gripper that can mimic rapid movement of 12 test cups.
• Bidirectional rotation control & freely adjustable number of rotating cups simplifies the test cup filling process.
• Automatic operations of liquid cooling system (water filling/draining/liquid level detection) reduce manual operation.
• Drying, cooling, and room temperature weighing are fully automatic and require no human intervention.
• 10.1" medical-grade touchscreen allows the instrument host to operate independently of a computer.
• The instrument host features a desktop design, saving space and adapting to various laboratory layouts.
• The system has an embedded network port, which can be connected to the Internet for remote control and upgrades.
• Professional computer software complies with GMP requirements for data traceability, satisfying the needs of the pharmaceutical industry.
• Multi-level user access control with configurable permissions.
• Electronic signature is designed in accordance with 21 CFR Part 11.

Testing Principle
Take the sample and mix thoroughly (if the crystals are large, crush into particles smaller than 2 mm). Take approximately 1 g or the weight specified in the standard and place the sample in a test cup that has been dried to constant weight under the same conditions as the sample. Weigh accurately and, unless otherwise specified, dry at 105℃ to constant weight. Calculate the loss-on-drying of the test sample from the weight loss and the sample weight.

Reference Standards
US Pharmacopeia, European Pharmacopoeia, British Pharmacopoeia, Japanese Pharmacopoeia, Chinese Pharmacopoeia, and other pharmaceutical-related testing standards. GB 5009.3-2016 and other food-related testing standards; GB/T 6284, JIS K 0068 and other chemical product-related testing standards.

Applications

Basic Applications — Pharmaceuticals — Loss-on-drying and moisture content determination of various pharmaceuticals.
Extensive Applications — Food — Loss-on-drying and moisture content determination of various foods.
Extensive Applications — Chemicals — Determination of loss on drying for various chemical products.

Technical Parameters (highlights)
Table 1: Test Parameter — Model: C870M
Test Range (mg) — 0.3–40000 ; 0.05–20000 (Optional)
Resolution (mg) — 0.1 ; 0.01 (Optional)
Repeatability (mg) — ±0.3 ; ±0.05 (Optional)
Temperature Range (℃) — Room Temp. ～ 130
Temperature Fluctuation (℃) — ±0.5
Test Pressure (kPa) — 0 ～ −20 (customizable)
Extended Functions — 21 CFR Part 11 (Optional); GMP Computer System Requirements (Optional)

Table 2: Technical Specifications
Test Stations — 12
Test Cup Volume — 40 mL (Note: customizable)
Gas Specifications — Compressed air (user-provided) or specified gases
Gas Source Pressure — 0.5 MPa～0.7 MPa (72.5 PSI～101.5 PSI)
Port Size — Φ8 mm polyurethane pipe
Host Dimensions — 24.8” H x 41.3” W x 28.7” D (63 cm × 105 cm × 73 cm)
Power Supply — 120 VAC ±10% 60 Hz / 220 VAC ±10% 50 Hz (selectable)
Net weight — 396 Lbs (180 kg)

Table 3: Product Configuration
Standard Configuration — Instrument host, balance (0.1 mg), liquid cooling module, gas drying module, test cups (12 pcs), Φ8 mm polyurethane tube
Optional Parts — Software, GMP computer system requirements, 21 CFR Part 11, air compressor, test cup (40 mL), weight (200 g), balance (0.01 mg), weight (50 g)

Notes

• All product features described are subject to the specific specifications listed in the Technical Parameters tables.
• All parameters in the tables were measured in the Labthink laboratory by professional operators, according to the requirements and conditions of relevant laboratory environmental standards.
• Test pressure and test cup volume can be customized; actual delivery may vary.

Caractéristiques / spécifications techniques

• Model: C870M
• Principle: Gravimetric (loss-on-drying)
• Test range: 0.3–40000 mg (standard); optional 0.05–20000 mg
• Resolution: 0.1 mg (standard); 0.01 mg optional
• Repeatability: ±0.3 mg (standard); ±0.05 mg optional
• Temperature range: Room Temp. to 130℃; fluctuation ±0.5℃
• Test stations: 12
• Test cup volume: 40 mL (customizable)
• Gas: compressed air (user-supplied); gas source pressure 0.5–0.7 MPa
• Port size: Φ8 mm polyurethane tube
• Host dimensions: 24.8” H x 41.3” W x 28.7” D (63 × 105 × 73 cm)
• Power supply: 120 VAC ±10% 60 Hz or 220 VAC ±10% 50 Hz
• Net weight: 396 Lbs (180 kg)
• Standard configuration includes balance (0.1 mg), liquid cooling module, gas drying module, 12 test cups
• Optional: GMP software/computer system, 21 CFR Part 11 compliance, higher-precision balances, air compressor, additional weights and cups
• Compliance/Standards: USP, EP, BP, JP, CP, GB standards and other relevant food and chemical testing standards
