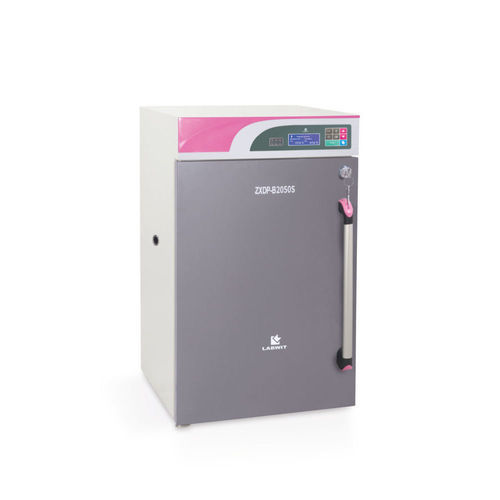

Laboratory incubator ZXDP-B2050S

forced convectionheatingventilated

Overview
ZXDP-B S Series 50 L direct-heating incubator designed for economical and reliable incubation of microorganism cultures. High-precision PID microprocessor control, programmable cycles and uniform forced-air circulation ensure reproducible results.

Features

• P.I.D. microprocessor controller with auto-tuning and 0.1°C display resolution.
• Exterior: #304 stainless steel powder-coated; Interior: #316 stainless steel for corrosion resistance.
• Forced-air circulation with low-noise fan, uniformity ±0.5°C @ 37°C.
• Programmable keyboard: up to 9 programs (18 steps) with ramp-and-soak and constant-temperature modes.
• Audible and visible over-temperature alarm, password protection and non-volatile memory.
• Inner glass door and outer locking door; OD 25 mm access port; includes 2 stainless steel grids (max 4).
• Thermal insulation with glass wool reduces heat loss and improves stability.

Specifications

• Model: ZXDP-B2050S
• Heat mode: Direct heat with gentle circulation
• Volume: 50 L
• Temperature range: Ambient +5°C to 65°C
• Temperature stability/uniformity: ±0.5°C (uniformity ±0.5°C @ 37°C)
• Display/resolution: LCD 0.1°C
• Timer: 0–9999 min; Setting: Digital
• Grids: 2 included (up to 4); Grid size (WxD): 330 x 345 mm; Distance between grids: 80 mm
• Inner dims (WxDxH): 350 x 350 x 410 mm; Exterior dims (WxDxH): 470 x 520 x 785 mm
• Power: 200 W; Electricity: 220–240 V, 50/60 Hz
• Net/Gross weight: 35 / 60 kg; Approvals: CE, ISO

Order Information
Model ZXDP-B2050S — Direct-heating incubator, 50 L, Ambient +5°C to 65°C. Specify mains voltage and required accessories when ordering.

Technical data

• Series: ZXDP-B S Series
• Capacity: 50 L
• Control: PID microprocessor, programmable (9 programs / 18 steps)
• Construction: Exterior #304 SS (powder coated), interior #316 SS
• Circulation: Forced-air, low-noise fan
• Safety: Over-temperature alarm, password protection, non-volatile memory
• Accessories: 2 stainless steel grids; OD 25 mm access port
• Electrical: 200 W, 220–240 V, 50/60 Hz
