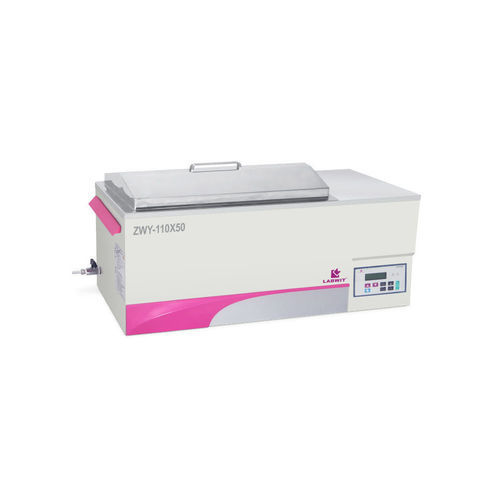

Shaking water bath ZWY-110X50

agitatinglaboratorybenchtop

50 Litres Capacity
The ZWY-110X50 reciprocal water bath shaker provides precise temperature control and uniform agitation for reproducible laboratory processing. Temperature is regulated by a PID microprocessor controller to ±0.1°C and the unit includes dual thermostats for added protection. The gabled lid and sloped tank rim direct condensate back into the bath to prevent droplets on samples.

Features

• Solid electric drive for smooth, quiet reciprocal agitation and continuous 24 h operation.
• PID microprocessor control ensures bath temperature accuracy of ±0.1°C across the full range.
• Clear LCD digital display for intuitive setup and monitoring of running conditions.
• Non-volatile memory retains settings after power loss and supports automatic restart.
• Electro-polished stainless steel gabled lid minimizes heat loss and evaporation.
• #304 stainless steel interior and supplied stainless steel tray for corrosion resistance and durability.
• Standard tray supplied (clamps sold separately).

Illustrative Icons
LCD display icon | Temperature control icon

Specifications Table
Model : ZWY-110X30 | ZWY-110X50
Volume (L) : 30 | 50
Gable Lid Included : Yes | Yes
Shaking Mode : Reciprocal
Temperature Range (°C) : Ambient - 99.9°C
Temperature Accuracy (°C) : ±0.1°C
Temperature Uniformity (°C) : ±0.2 @ 37°C 100rpm
Timer : 0 to 500 hours
Stroke (mm) : 16 (Default), 24
Speed Range (rpm) : 20-180
Tray (mm) (WxD) : 434x256 | 494x316
Capacity notes : *Glass dimensions may reduce max. capacity
Sample capacity (50 ml / 100 ml / 250 ml / 500 ml / 1000 ml) : 28/18/11/7/- (ZWY-110X30) | 40/28/15/11/6 (ZWY-110X50)
Inner Dimensions (mm) (WxDxH) : 508x300x200 | 568x360x250
Exterior Dimensions (mm) (WxDxH) : 795x360x380 | 855x420x430
Packing Dimensions (mm) (WxDxH) : 865x430x520 | 925x490x590
Net/Gross Weight (kg) : 29/40 | 33/49
Power (W) : 1600 | 2000
Electricity : 220-240V 50/60 Hz
Approval : CE, ISO

Accessories / Optional Items

• P6014 – Tray for ZWY-110X30, S/S
• P6015 – Tray for ZWY-110X50, S/S
• P7015 – Universal Tray for ZWY-110X30
• P7016 – Universal Tray for ZWY-110X50
• P8001–P8006, P8010–P8016 – Various T clamps, tube racks, clamps for plates and gable lids (stainless steel or ABS variants as specified)

Technical Specifications

• Series: ZWY-110X series
• Model shown: ZWY-110X50
• Volume: 50 L
• Shaking mode: Reciprocal
• Temperature range: Ambient to 99.9°C
• Temperature accuracy: ±0.1°C (PID controller)
• Temperature uniformity: ±0.2°C @ 37°C 100 rpm
• Speed range: 20–180 rpm
• Stroke: 16 mm (default), 24 mm option
• Timer: 0–500 hours
• Tray size (WxD): 494 x 316 mm (ZWY-110X50)
• Inner dim. (WxDxH): 568 x 360 x 250 mm (ZWY-110X50)
• Exterior dim. (WxDxH): 855 x 420 x 430 mm (ZWY-110X50)
• Power: 2000 W (ZWY-110X50)
• Electrical supply: 220–240V, 50/60 Hz
• Materials: #304 stainless steel interior and tray
• Approvals: CE, ISO
