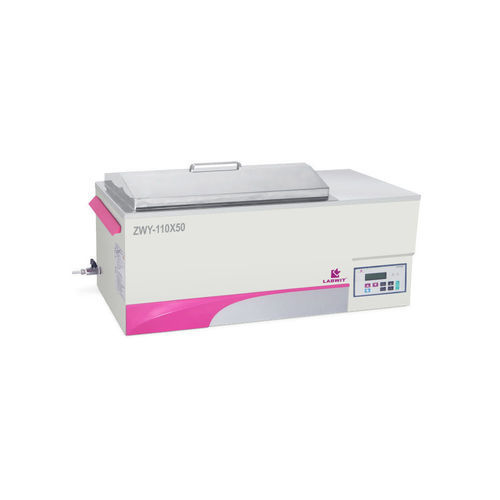

Shaking water bath ZWY-110X50

agitatinglaboratoryheating

Overview
The ZWY-110X50 reciprocal water bath shaker provides precise temperature control and uniform agitation for laboratory and industrial sample processing. Temperature is controlled to ±0.1°C by a P.I.D. microprocessor controller and dual thermostats offer added protection. The gabled lid design channels condensate back into the bath to protect samples.

Key features

• Solid electric drive for quiet, uniform agitation and continuous 24 h operation.
• P.I.D. temperature control with ±0.1°C accuracy across the full range (ambient to 99.9°C).
• Easy-to-read LCD for setpoint and status monitoring; non-volatile memory preserves settings after power loss.
• Electro-polished gabled stainless steel lid to reduce evaporation and condensate drip.
• Interior in high-quality #304 stainless steel for corrosion resistance and durability.
• Standard stainless steel tray included (without clamps).

Models / Comparison (selected rows)

• Models: ZWY-110X30 | ZWY-110X50
• Volume (L): 30 | 50
• Gable Lid Included: Yes | Yes
• Shaking Mode: Reciprocal | Reciprocal
• Temperature Range (°C): Ambient – 99.9 | Ambient – 99.9
• Temperature Accuracy (°C): ±0.1 | ±0.1
• Temperature Uniformity (°C): ±0.2 @ 37°C, 100 rpm | ±0.2 @ 37°C, 100 rpm
• Speed Range (rpm): 20–180 | 20–180
• Stroke (mm): 16 (default), 24 optional | 16 (default), 24 optional
• Tray (WxD mm): 434 x 256 | 494 x 316
• Inner Dimensions (WxDxH mm): 508 x 300 x 200 | 568 x 360 x 250
• Exterior Dimensions (WxDxH mm): 795 x 360 x 380 | 855 x 420 x 430
• Net/Gross Weight (kg): 29/40 | 33/49
• Power (W): 1600 | 2000
• Electricity: 220–240 V, 50/60 Hz | 220–240 V, 50/60 Hz
• Approvals: CE, ISO | CE, ISO

Accessories & Options (examples)

• P6014: Tray for ZWY-110X30, S/S
• P6015: Tray for ZWY-110X50, S/S
• P7016: Universal Tray for ZWY-110X50
• Various T-clamps for flasks (50 ml–1000 ml) and tube racks (S/S and ABS)
• P8016: Gable Lid for ZWY-110X50

Technical specifications

• Model: ZWY-110X50
• Capacity: 50 Litres
• Shaking mode: Reciprocal
• Temperature range: Ambient to 99.9°C
• Temperature control: P.I.D. microprocessor controller
• Temperature accuracy: ±0.1°C
• Temperature uniformity: ±0.2°C @ 37°C, 100 rpm
• Speed range: 20–180 rpm
• Stroke: 16 mm (default), 24 mm optional
• Timer: 0 to 500 hours
• Tray dimensions (WxD): 494 x 316 mm
• Inner dimensions (WxDxH): 568 x 360 x 250 mm
• Exterior dimensions (WxDxH): 855 x 420 x 430 mm
• Packing dimensions (WxDxH): 925 x 490 x 590 mm
• Net/Gross weight: 33 / 49 kg
• Power: 2000 W
• Electricity: 220–240 V, 50/60 Hz
• Material (interior): #304 stainless steel
• Standard lid: Gabled stainless steel lid (reduces evaporation and condensate)
• Standard tray: Stainless steel tray (without clamps)
• Approvals: CE, ISO
• Indicative sample capacities (50L model): 50 ml: 40; 100 ml: 28; 250 ml: 15; 500 ml: 11; 1000 ml: 6
