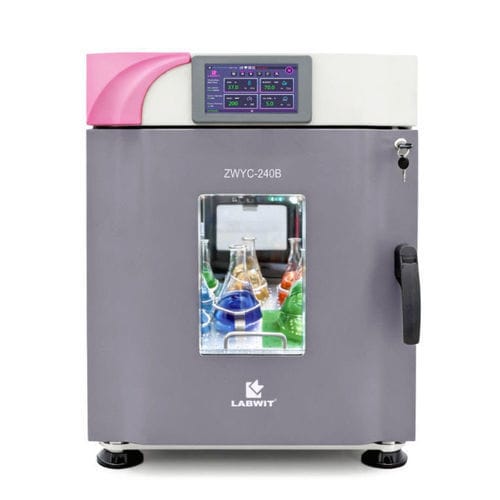

CO2 incubator ZWYC-240B

shakinglaboratoryfor live cells

Product overview
The ZWYC-240B Ultra Elite Benchtop Cell Culture Shaking Incubator is designed for cell culture, microbial cultivation and synthetic biology research. It integrates a high-precision Peltier temperature control system, a stable magnetic-drive shaking mechanism, an intelligent control platform and a low-energy design to provide stability and consistency for long-term continuous operation. Precise control of temperature and shaking speed, with optional humidity and CO2 control, creates an optimized growth environment to improve reproducibility and data reliability.

High-Performance Magnetic Drive Shaking System
High-torque magnetic drive motor with FOC vector control technology for smooth, low-noise, low-heat operation. Supports clockwise, counter-clockwise and alternating rotation modes. Three-axis eccentric shaking mechanism ensures stable and uniform agitation suitable for sensitive cell and microbial cultures.

Intuitive & Intelligent User Interface
Equipped with a 7-inch high-resolution full-colour touch screen. Multi-parameter real-time display with a clear layout and intuitive operation logic for at-a-glance monitoring of key parameters.

Flexible Control Modes

• Supports fixed value control and programmable control modes.
• Five built-in preset programs.
• Each program can configure up to 100 segments and cycles; maximum duration per segment 999 hours 59 minutes for complex multi-stage and long-term protocols.

Precision Peltier Temperature Control
Customized high-performance Peltier modules using solid-state heating and cooling (no compressor or refrigerant). Compact, quiet, vibration-free operation with fast thermal response, precise control and rapid switching between heating and cooling. Simple structure minimizes cleaning dead zones and reduces maintenance requirements.

Compact Design with High Capacity

• Benchtop design, space-saving.
• Supports double-stacking.
• Chamber capacity supports 2 × 5 L Erlenmeyer flasks.

Double-Layer Glass Viewing Window
Double-layer insulated glass improves thermal insulation and prevents condensation. Inner door with single-piece glass enhances sealing and reduces contamination risk. Easy to clean and disinfect for high-cleanliness environments.

Illumination & UV Sterilization
Internal LED illumination for chamber visibility. Built-in high-efficiency UV lamp with programmable timing; interlocked with door switch for safe operation.

High-Grade Stainless-Steel Chamber & Hygienic Design
Chamber made from #304 stainless steel with fully rounded-corner design for easy cleaning and elimination of dead zones. Waterproof isolation structure allows stable operation in high-temperature, high-humidity environments. Chamber supports direct water rinsing and disinfection with a bottom drain port.

Adjustable Fixed Shelf for Static Culture
Height-adjustable shelf enables simultaneous shaking and static cultivation within the same chamber for enhanced experimental flexibility.

User Access & Security

• Three-level user access management with configurable privileges.
• Password protection for critical system parameters and configuration settings.
• Prevention of unauthorised access and unintended parameter changes; door lock to prevent unauthorised access.

Electronic Records & Data Integrity
Real-time operation logs, parameter curves and alarm events. Secure generation and storage of electronic records in non-editable format. USB export of electronic records in read-only file formats.

Audit Trail & Traceability
Automatic recording of operation logs, alarm events and parameter changes with time-stamped audit trails. Long-term data storage capability up to 10 years.

Comprehensive Safety Protection

• Non-volatile memory saves settings and allows restart after power failure.
• Power interruption notification for traceability.
• Door-open safety interlock with active braking for shaking.
• Audible and visual alarms for high/low parameter deviations and sensor faults.
• Independent leakage protection and over-current protection.

Extensive Optional Configurations

• Natural evaporation humidification tray with humidity display.
• Active CO2 control system (0–20%, ±0.2% accuracy) with imported infrared sensors.
• LED photosynthetic lighting control (0–100%, multiple spectra available).
• TCP/IP Modbus & Wi-Fi for remote monitoring.
• Built-in micro printer for real-time data output.

Specifications (summary table)
Model: ZWYC-240B
Chamber Volume: 120 L
Controller: PID microprocessor
Display: 7-inch full-colour LCD touch screen
Heating/Cooling: Peltier module
Air Circulation: Forced convection
Ambient Temperature: 5–30°C
Temp. Range: 4°C–60°C
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±0.1°C
Uniformity: ±0.5°C @ 37°C (no load)
Timer Range: 0–999 h 59 min
Control Mode: Fixed Value / Programmable
User Access Levels: 3
Data Output: USB Port; Options: Printer, TCP/IP, Wi-Fi
Stationary Shelf: 1 pcs (multiple level adjustable)
Access Port: Ø50 mm × 1 pcs
Internal Dimension (W×D×H): 490 × 490 × 500 mm
Exterior Dimension (W×D×H): 580 × 670 × 780 mm
Packing Dimension (W×D×H): 690 × 730 × 935 mm
Net/Gross Weight: 82 kg / 110 kg
Power Supply: 220–240 V / 50–60 Hz

Caractéristiques / Spécifications techniques

• Model: ZWYC-240B
• Chamber Volume: 120 L
• Internal Dimension (W×D×H): 490 × 490 × 500 mm
• Exterior Dimension (W×D×H): 580 × 670 × 780 mm
• Packing Dimension (W×D×H): 690 × 730 × 935 mm
• Net/Gross Weight: 82 kg / 110 kg
• Controller: PID microprocessor
• Display: 7-inch full-colour LCD touch screen
• Heating/Cooling: Peltier module (solid-state heating/cooling)
• Air Circulation: Forced convection
• Ambient Operating Temperature: 5–30°C
• Temperature Range: 4°C–60°C
• Temperature Resolution: 0.1°C
• Temperature Fluctuation: ±0.1°C
• Temperature Uniformity: ±0.5°C @ 37°C (no load)
• Timer Range: 0–999 h 59 min
• Shaking Drive Mode: Three-axis Magnetic Drive
• Shaking Mode: Orbital
• Speed Range: 2–300 rpm
• Orbit: 25 mm (default); 50 mm (optional)
• Speed Accuracy: ±1 rpm
• Platform Size: 450 × 370 mm
• Maximum Load: 16 kg
• Access Port: Ø50 mm × 1
• Stationary Shelf: 1 pcs (multi-level adjustable)
• Data Output: USB; optional printer, TCP/IP, Wi-Fi
• Optional: Humidification kit, IR CO₂ kit (0–20%, ±0.2%), LED lighting panels, built-in printer, communication kits and various trays/clamps/accessories
• Power Supply: 220–240 V / 50–60 Hz
