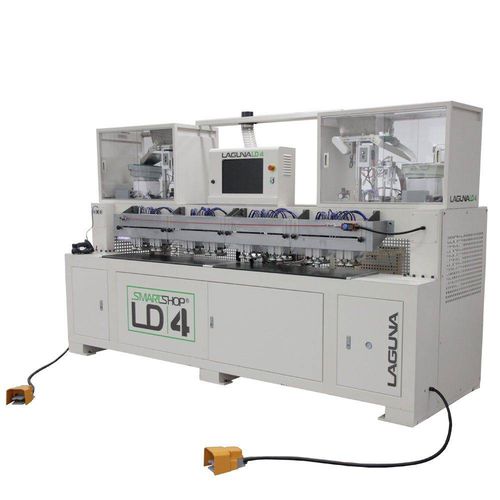

The Laguna Tools SmartShop LD4 is a specially built CNC router for cabinet making. Specifically designed to drill and insert fasteners, these machines are perfect for manufacturing cabinets, drawer boxes, closets, desks, solid wood furniture and many other applications. The SmartShop LD4 is easy to learn, easy to use and an outstanding option for making your business more profitable.
•Power: 208v-220v, 1 Phase, 30 Amps
•96″ Maximum Work Zone
•Footprint: 82″ H x 45″ W x 135″ L
•3-Axis Control For Positioning
•Solid One-Piece Welded Tubular Steel Frame
The Laguna Tools SmartShop LD4 meets the critical need to improve production efficiency with the new, innovative technology from LockDowel & OVVO. Providing faster and more precise manufacturing by drilling and inserting the LockDowel & OVVO products, it is perfect for cabinets, drawer boxes, closets, desks, solid wood furniture and many other applications.
Power: 208V-220V, 1 Phase, 30 Amps
Maximum Work Zone: 96"
Footprint (H x W x L): 82" x 45" x 135"
3-Axis Control For Positioning
Weight: 6,000 lbs
Solid One-Piece Welded Tubular Steel Frame
Dust Extraction Via 4" Dust Port
Two 2HP 2400 RPM Precision Spindles For Drilling (5mm and 8mm)
Windows PC Frontend Control For Creating
Two Vibratory Hoppers And Inserters For 30mm Or 40mm Spring Pins, E-Clips Or H-Clips
8 Pneumatic Adjustable Hold-Down Clamp
