Cut-off saw SQ-80for metalsfor metallographic samplesabrasive
Add to favorites
Compare this product
Characteristics
- Technology
- cut-off
- Treated material
- for metals
- Applications
- for metallographic samples
- Other characteristics
- abrasive
- Circular saw blade diameter
250 mm
(10 in)- Round piece diameter
80 mm
(3 in)
Description

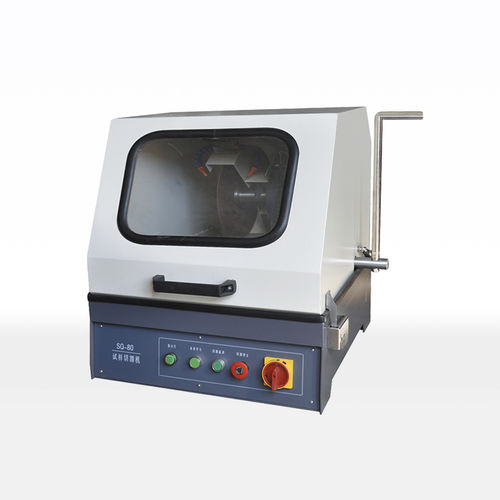

SQ-80 Metallographic cut off saw
Main features:
SQ-80 is an especially user-friendly abrasive cutting machine with manual cut-off. Opening the machine folds away the hood to the inside so that the whole cutting chamber is easily accessible. It has solid structure, safety lock on hood, The round window opens a wide field of view during the cutting process. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Technical Specifications:
Power supply Three-phase four wire( 380V 50HZ)
Wheel speed 2800rpm
Wheel size 250*2*32mm
Max.cutting diameter 80mm
Motor kW 3kW
Dimension (WxDxH) 700*720*680mm
Catalogs
SQ-80
1 Pages
