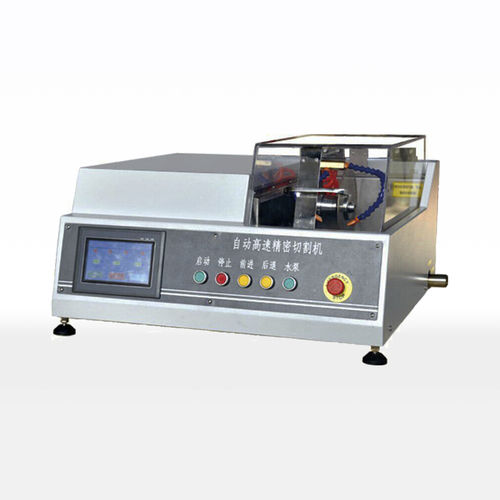

Rotary blade cutting machine GTQ-5000B
for metalfor ceramicssample

rotary blade cutting machine
rotary blade cutting machine
Add to favorites
Compare this product


Characteristics

Technology
rotary blade
Material
for metal, for ceramics
Product handled
sample
Control type
NC
Other characteristics
precision
Weight

130 kg
(286.6 lb)

Description

GTQ-5000B precision cutting machine is suitable for precision deformation free cutting of metals, electronic components, ceramic materials, crystals, cemented carbide, rock samples, mineral samples, concrete, organic materials, biomaterials (teeth, bones) and other materials. The equipment has high positioning accuracy; Large speed regulation range; Strong cutting ability; Forced circulation cooling system; Preset feed speed; Touch screen control display, easy to operate and control; Automatic cutting can reduce the fatigue of operators and ensure the consistency of sample making; The wide and bright cutting room with safety switch allows the user to save the set parameters to the user parameter interface. The user can select the stored parameters for cutting different materials without setting the parameters again every time. It is one of the ideal equipment for industrial and mining enterprises and scientific research institutes to prepare high-quality samples. It is one of the ideal equipment for industrial and mining enterprises and scientific research institutes to prepare high-quality samples. 2、 Main technical indicators 1. Feed speed: 0.01 ~ 3mm / S (the adjustment step is 0.011mm) 2. Grinding wheel speed: 500 ~ 5000rpm 3. Manual feed speed: 0.01 ~ 15mm / S 4. Backward speed of impact cutting: 0.01 ~ 15mm / S 5. Forward distance of impact cutting: 0-2mm 6. Backward distance of impact cutting: 0-1.99mm 7. Maximum cutting diameter: φ 60mm 8. Maximum stroke: 260mm 9. Maximum clamping length of workbench: 150mm 10. Maximum clamping width of workbench: 200mm 11. Size of cutting piece: 100mm; 125mm; 150mm; 200mm 12. Motor power: 1200W 13. Power supply: 220V 50Hz

Catalogs
