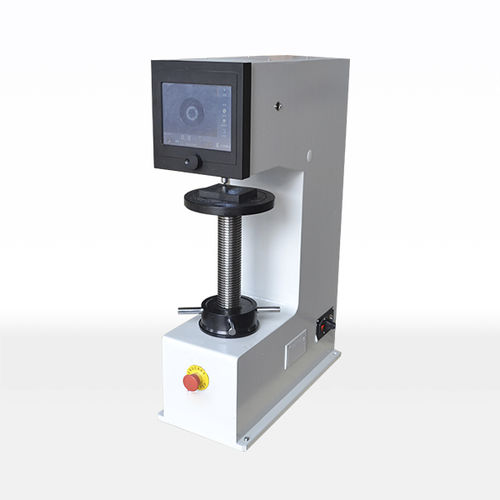

Brinell hardness tester MHBS-3000

RockwellVickersbenchtop

MHBS-3000 Main features: novel shape, firm structure and high test efficiency; Automatic loading, closed-loop control series, LCD screen display during test; On machine measurement, Rockwell and Vickers hardness values and tensile strength can be converted, and hardness measurement results can be printed randomly; Large LCD screen, intelligent menu prompt, easy to operate; Optional video system, CCD image processing system; The accuracy shall comply with GB / T231 2 iso6506-2 and ASTM E10 Scope of application: determine the Brinell hardness of ferrous metals, non-ferrous metals and bearing alloy materials; It has a wide range of applications, especially for precision measurement of parallel planes. Main technical specifications: Brinell scale: hbw2 5/62.5、HBW2. 5/187.5、HBW5/125、HBW5/750、HBW10/100、HBW10/1500、HBW10/3000、HBW10/250、HBW10/500、HBW10/1000 Test force: 62.5kgf (612.9n), 100kgf (980.7n), 125kgf (1226n), 187.5kgf (1839n), 250kgf (2452n), 500kgf (4903n), 750kgf (7355n), 1000kgf (9807n), 1500kgf (14710n), 3000kgf (29420n) Maximum height of test piece: 225mm; Load holding time: 5 ~ 60s Hardness test range: 8 ~ 650hbw optical magnification: 20x Distance from indenter center to machine body: 135mm power supply: AC220 + 5%, 50 ~ 60Hz
