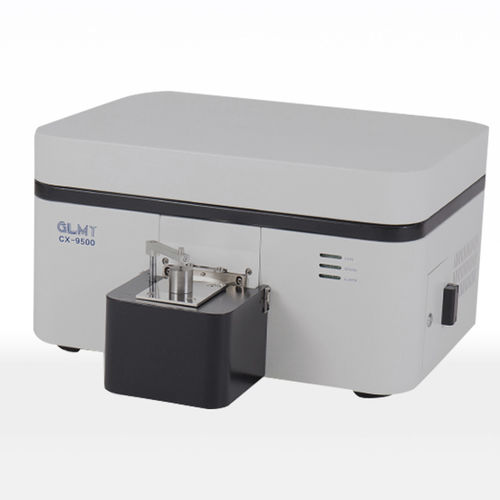

Optical spectrometer CX-9500
for analysisCCDdirect-reading

Add to favorites

Compare this product

Go to the Laizhou Lailuote Test Instrument Co., Ltd. website for more information

Characteristics

Type

optical

Domain

for analysis

Detector type

CCD

Other characteristics

direct-reading

Wavelength

Max.: 510 nm

Min.: 160 nm

Length

700 mm
(27.56 in)

Width

660 mm
(25.98 in)

Height

340 mm
(13.39 in)

Description

Specifications： Optical System： Optical Structure Paschen-Runge Mount Rowland Circle of Diameter 400mm Wavelength Range 160nm- 510nm Detector Multi high resolution CCD detectors Pixel Resolution 10pm Full Spectrum Light room temperature is controlled automatically Spark Source Type Digital arc and spark source/New plasma generator Spark Frequency 100-1000Hz Plasma Current 1-80A Ignition Voltage >7000V Spark Stand Argon flushed with minimal consumption of Argon Spray discharge electrode technology Adjustable sample clamp Others: Measurable Elements Fe base, Al base, Cu base, Zn base, ect Dimension 700mm(L)*660mm(W)"340mm(H) Weight About 30kg Storage Temperature 0C-45C Operating Temperature 10C -30C Power AC220V/50Hz
