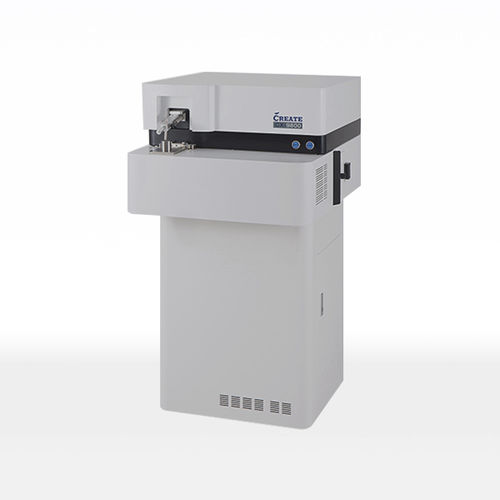

Optical spectrometer CX-9800measurementCCDdirect-reading
Add to favorites
Compare this product
Characteristics
- Type
- optical
- Domain
- measurement
- Detector type
- CCD
- Other characteristics
- direct-reading
- Wavelength
Min.: 130 nm
Max.: 800 nm
- Length
800 mm
(31.5 in)- Width
700 mm
(27.56 in)- Height
1,230 mm
(48.43 in)
Description
Specifications：
Optical Structure：
Optical Structure Paschen-Runge Mount
Rowland Circle of Diameter 400mm
Wavelength Range 130nm-800nm
Detector Muli high resolution CCD detectors
Degree Of Vacuum Auto control within 6-16 Pa
Pixel Resolution 10pm
Full Spectrum
Light room temperature is contolled automatically
Spark Source： Type Digital arc and spark source/New plasma generator
Spark Frequency 100-1000Hz
Plasma Current 1-80A
Ignition Voltage >8000V
Spark Stand
Argon flushed with minimal consumption of Argon
Spray discharge electrode technology
Adjustable sample clamp
