Three-sided tombstone 43360
Add to favorites
Compare this product
Characteristics
- Options
- three-sided
Description

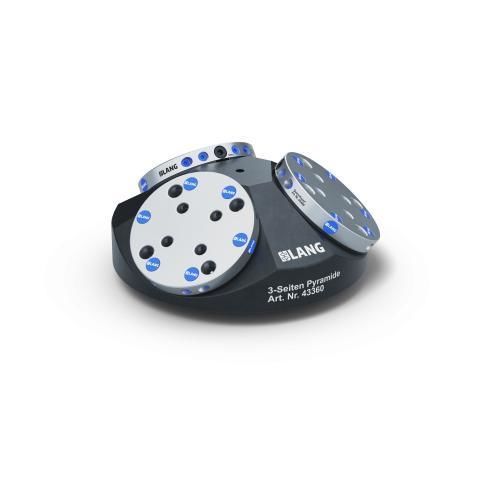

Quick•Point® 52/96, 3-face Pyramid
Ø 394 x 150 mm, incl. 3x Quick•Point® 52/96 combi round plate 45480
The 3-face pyramid made of high-strength aluminum offers users optimum accessibility in 5-face machining. This multiple clamping solution is ideal for increasing the machine runtime of 5-axis machining centers. Thanks to the combination zero point plates with the combined 52 mm and 96 mm grid size, any vise size of LANG Technik can be used during machining.
Further information can be found in our catalog starting on page 10 or
online at https://lang-technik.de/en/solutions/zero-point-clamping-system/quick-point-zero-point-clamping-system
Ø 394 x 150 mm, incl. 3x Quick•Point® 52/96 combi round plate 45480
The 3-face pyramid made of high-strength aluminum offers users optimum accessibility in 5-face machining. This multiple clamping solution is ideal for increasing the machine runtime of 5-axis machining centers. Thanks to the combination zero point plates with the combined 52 mm and 96 mm grid size, any vise size of LANG Technik can be used during machining.
Further information can be found in our catalog starting on page 10 or
online at https://lang-technik.de/en/solutions/zero-point-clamping-system/quick-point-zero-point-clamping-system
