Machine tool zero-point clamping unit 85720

modular clamping platemulti clamping systemhigh-precision

Quick•Point® 96, Modular Plate

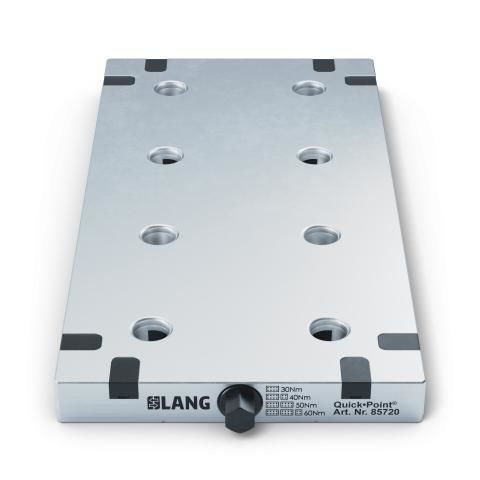

2-fold, 384 x 192 x 27 mm, without mounting bores
The new expandable Quick•Point® modular plates are characterized by even more simple, faster and user-friendly handling.With just one tightening screw, several module plates can be actuated together. A total of two 2-fold modular plates and one 1-fold modular plate can be connected in series (resulting in a length of 960 mm in the y-direction). This makes it easy to create a cross-plate zero-point grid across the entire machine table that works in both the x- and y-directions. The Quick•Point® modular plates are available without predefined mounting holes, which allows completely individual adaptation to the conditions of the machine table. LANG offers the insertion of the necessary mounting holes as a service, but this can also be done by the customer.

Further information can be found in our catalog starting on page 10 or
online at https://lang-technik.de/en/solutions/zero-point-clamping-system/quick-point-zero-point-clamping-system
