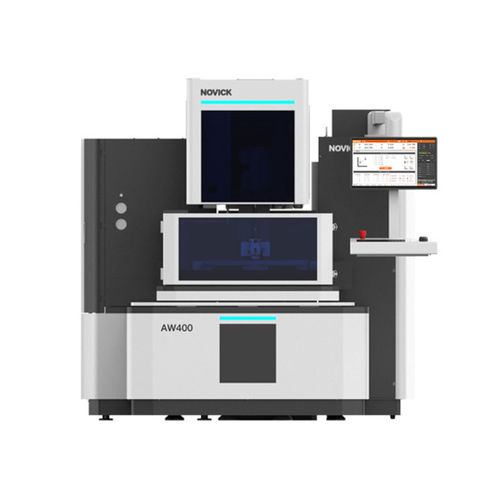

Wire electrical discharge machine AW400

CNCprecisionfor mold manufacturing

Overview
The AW400 is a CNC low-speed wire-cut EDM designed for precision machining of conductive materials. It inherits the reliability of previous slow-wire walking systems and adds practical upgrades: a high-visibility liquid tank, a front processing-status LED strip and an optimized, modular system architecture for more intuitive operation and scalability. Optional upgrades include X/Y linear motors and a finishing module for improved surface finish.

Applications

• Aerospace components
• Automotive parts and tooling
• Electronics and precision components
• Mold and toolmaking
• General metal processing
• Post-processing for metal 3D printing

Category
Precision CNC low-speed wire series

Keywords

• low-speed wire EDM
• wire-cut EDM
• slow wire walking
• precision wire cutting
• AW400

Product Details
Parameters: Unit: AW400

Technical specifications

• Model: AW400
• Overall dimension: 2100 x 3050 x 2100 mm
• Machine weight: 3000 kg
• Table size: 650 x 490 mm
• Workbench height: 1000 mm
• Axis travels (X/Y/Z): 400 x 300 x 220 mm
• U, V axis stroke: 80 x 80 mm
• Max machining taper: ±25°/50
• Max workpiece weight: 400 kg
• Max workpiece size: 800 x 600 x 215 mm
• Motors: Imported AC servo system
• Copper wire diameters supported: 0.15 / 0.20 / 0.25 / 0.30 mm
• Surface roughness: Ra ≤ 0.45 μm (standard), Ra ≤ 0.25 μm (with finishing module)
• Max machining current: 25 A
• Processing program storage capacity: 5000
• Max processing speed: up to 160 mm²/min (Φ0.25 brass wire); up to 250 mm²/min (Φ0.3 high-speed wire, requires expansion module)
• Power supply: 3 x 380V 50/60Hz, 7 kVA
• Full load current: 10 A
• Liquid tank door: Manual casement
• Optional: X/Y linear motor upgrade available
