Wire electrical discharge machine AW600

CNCfor mold manufacturingprecision

Product overview

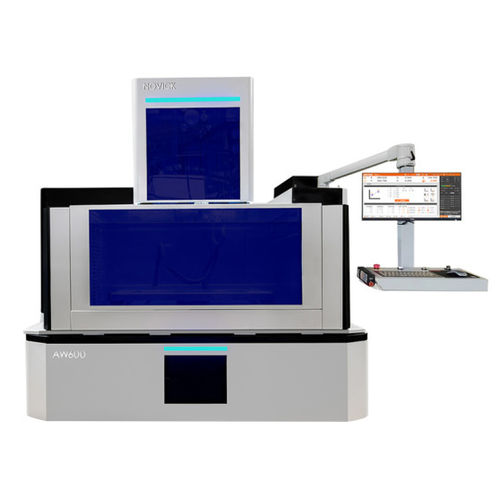

AW600 low-speed wire-cut EDM (AW series) is the fourth-generation slow-wire machine developed in-house. It preserves the stability and reliability of the previous generation while improving the control system's usability and extensibility. Hardware and software are customized to support automated wire feeding and efficient production of parallel lines, targeting aerospace, automotive, special materials and electronics mold machining.

Main applications

• Aerospace components
• Automotive parts and tooling
• Special materials and hard-to-machine alloys
• Electronic industry mold and precision components

Category

• Precision CNC slow-wire EDM series

Keywords

• Slow wire stepping
• Wire-cut EDM, slow wire
• Low-speed wire cutting machine

Technical parameters

• Model: AW600
• Overall dimensions: 3000 × 3400 × 2300 mm
• Machine weight: 3500 kg
• Table size: 850 × 600 mm
• Workbench height (to ground): 920 mm
• X, Y, Z travel: 600 × 400 × 360 mm
• U, V stroke: 100 × 100 mm
• Maximum machining taper: ±25°/80
• Maximum workpiece weight: 800 kg
• Maximum workpiece size: 1030 × 800 × 350 mm
• X, Y, U, V, Z axis motors: Imported AC servo system
• Copper wire diameter: 0.15 / 0.20 / 0.25 / 0.30 mm
• Optimum surface roughness: Ra ≤ 0.45 μm (≤ 0.25 μm with finishing module)
• Maximum machining current: 25 A
• Program storage capacity: 5000
• Maximum processing speed: 160 mm²/min (Φ0.25 brass wire); 250 mm²/min (Φ0.3 high-speed wire with current expansion module)
• Standard power supply: 3×380V 50/60Hz 7 kVA
• Full load current: 10 A
• Liquid tank door opening: Automatic lifting

Optional / additional configurations

• Finishing module for improved surface roughness
• Current expansion module for higher-speed wires (Φ0.3)
• X and Y axes available with linear motor upgrade
