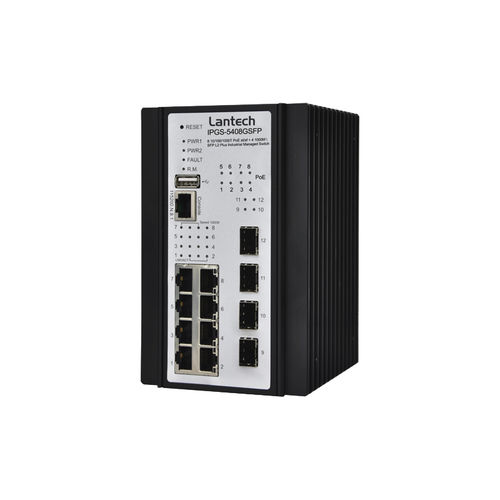

8 10/100/1000T PoE at/af + 4 1000M SFP L2+ Industrial Managed Ethernet Switch w/ Enhanced G.8032 Ring
Support IEEE802.3at/af up to 30W per port
PoE management incl. Detection and Scheduling
Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode, multi-VLAN and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI /RSTP ; support MRP ring
Miss-wiring avoidance & node failure protection
User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***; Complete CLI
Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; DHCP Snooping, Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3,TACACS+**, QinQ
Protocol based VLAN ; IPv4 Subnet based VLAN
Optional Environmental Monitoring** for temp., voltage ,current , and total PoE load(-M model)
USB port to backup, restore the configuration file and upgrade firmware*
