managed ethernet switch / 12 ports / wall / compact

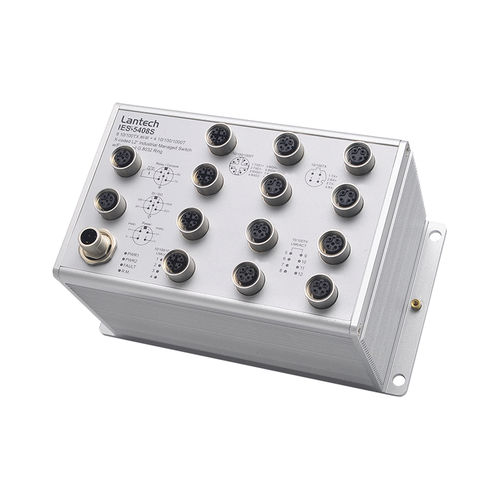

IES-5408S

• Type:

  managed

• Number of ports:

  12 ports

• Mounting:

  wall

• Other characteristics:

  compact, EN50155

• Applications:

  industrial, for railway applications

8 10/100TX + 4 10/100/1000T X-coded L2+ EN50155 Managed Ethernet Switch w/ enhanced G.8032 Ring ; 24V/WV input models/h3>
EN50155/61373/45545-2 verification*; Compact size
Wide input range from 16.8V to 137.5V w/ galvanic isolation
Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode, multi-VLAN and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI /RSTP ; support MRP ring**
Miss-wiring avoidance & node failure protection
IP65/IP54 housing; User friendly UI, including auto topology drawing; Complete CLI
Support LACP link aggregation, IGMP v3/router port, DHCP server & DHCP Option82; Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3,TACACS+*, QinQ**, SMS**
Protocol based VLAN** ; IPv4/IPv6 Subnet based VLAN**
Optional bypass in case of power failure, watchdog loss
Environmental Monitoring for temp., voltage, current
Optional InstaView** for centralized backup, editing the configuration file and upgrade firmware
N-key configurator** for upgrading, auto back / editable configuration restore without computer
